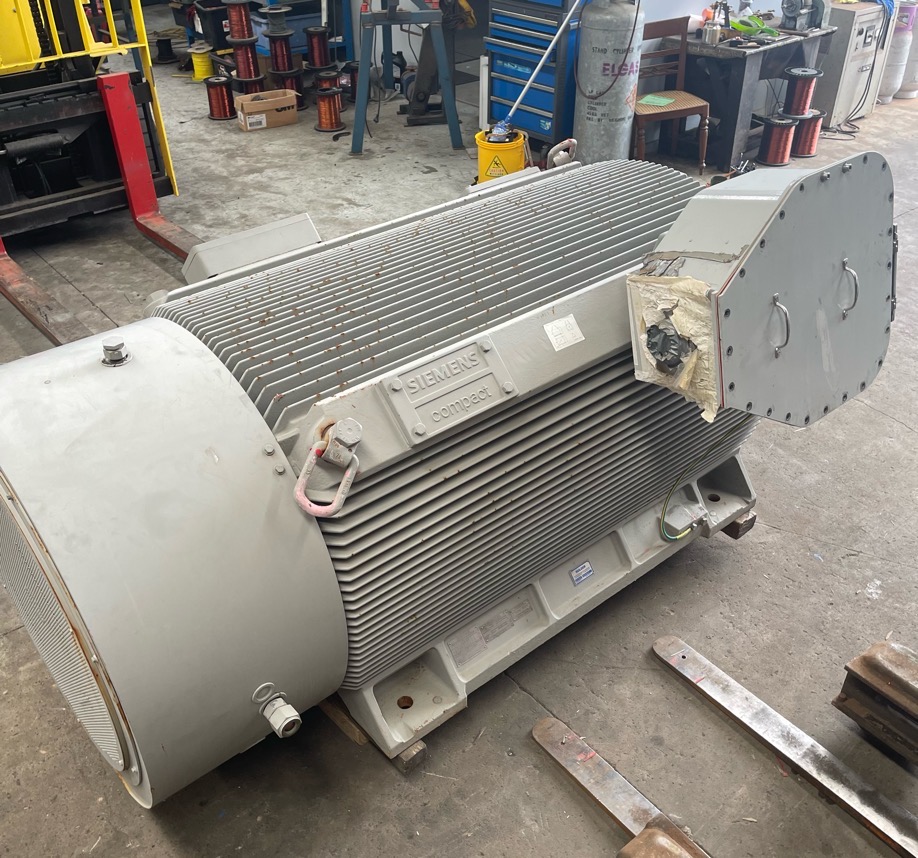

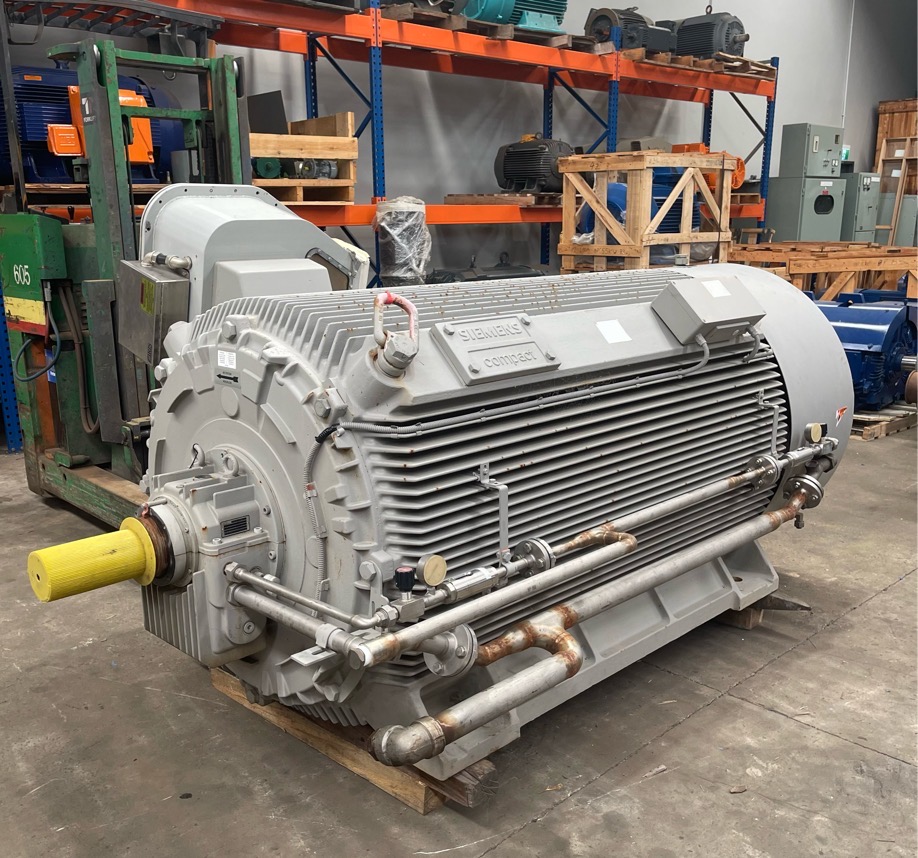

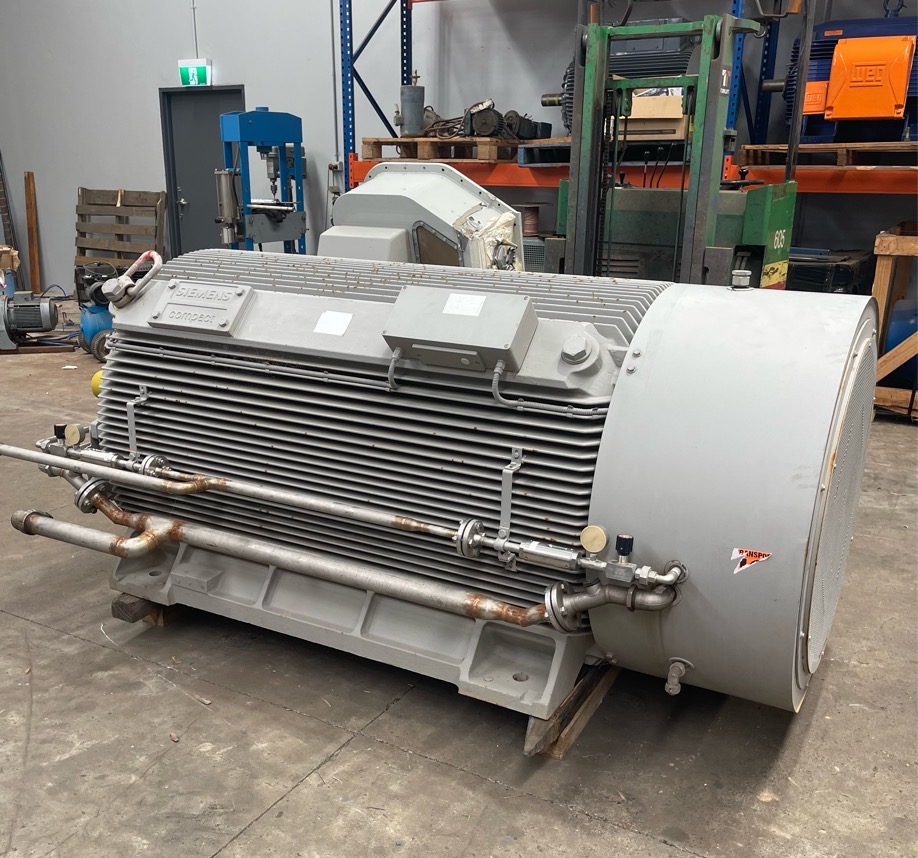

1100 kw AC Electric Motor
1500 hp, 2-pole, 6600v, 500 frame, Siemens < Back
| Type | AC Electric Motor |
| Make | Siemens |

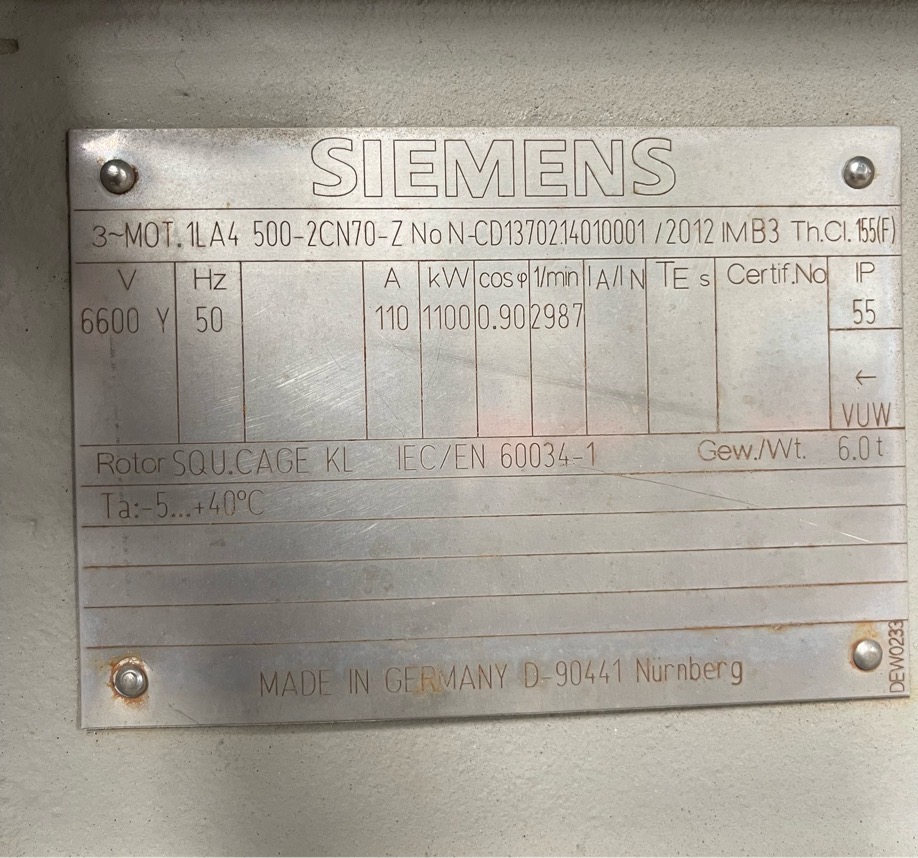

| Model Number | 1LA4 500-2CN70-Z |
| Manufacture origin | Germany |
| Year Of Manufacture | 2012 |
| KW | 1100 |
| HP | 1500 |
| Poles | 2 |
| Rated RPM | 2987 |
| Rated Frequency | 50 hz |
| Rated Voltage | 6600 v |
| F/L Amps | 110 A |
| Protection Rating | IP 55 |
| Mount | B3 Foot |
| Frame | 500 |
| Weight | 6,000 kg |
| Total Length | 2670 mm (incl shaft) |
| Total width | 1,499 mm (incl RHS box) |
| Total height | 1,199 mm |
| Centre shaft height | 500 mm |
| Feet Measurements | Front to Back 1320 mm, Across 950 mm |
| Front hole to end of shaft | 500 mm |
| Shaft diameter | 95 mm |
| Shaft length | 170 mm |
| Notes | Drawings / Datasheet / Freight all available on request |
| Insulation Class | F |
| Quantity | 1 |
| Condition | New / Unused |
