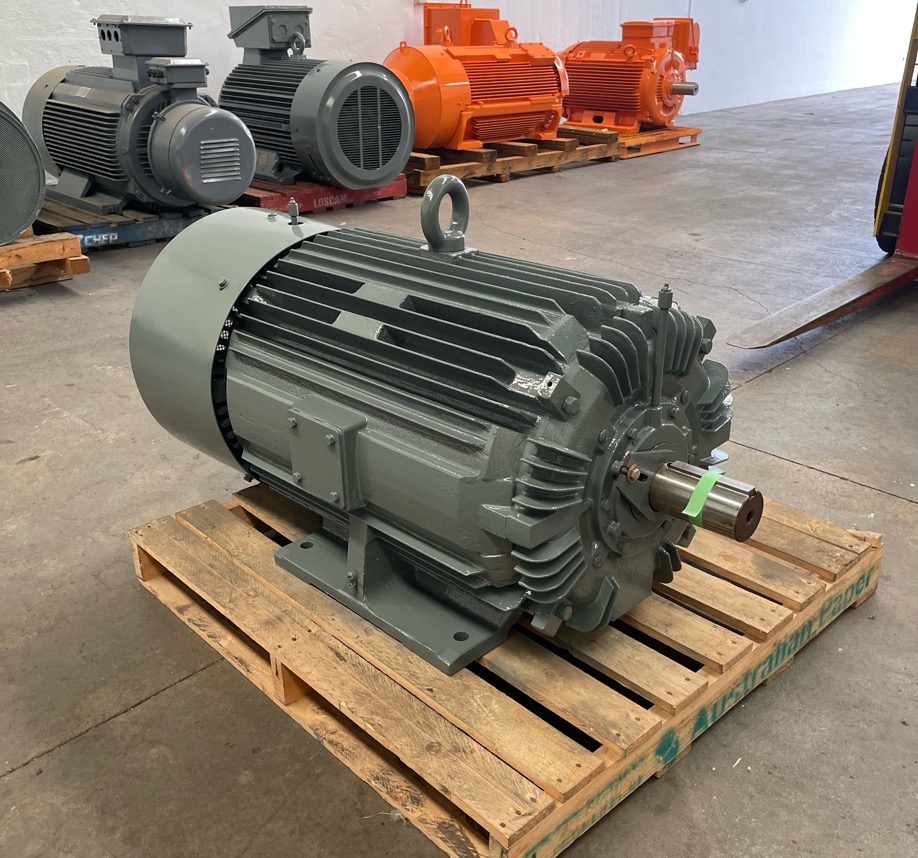

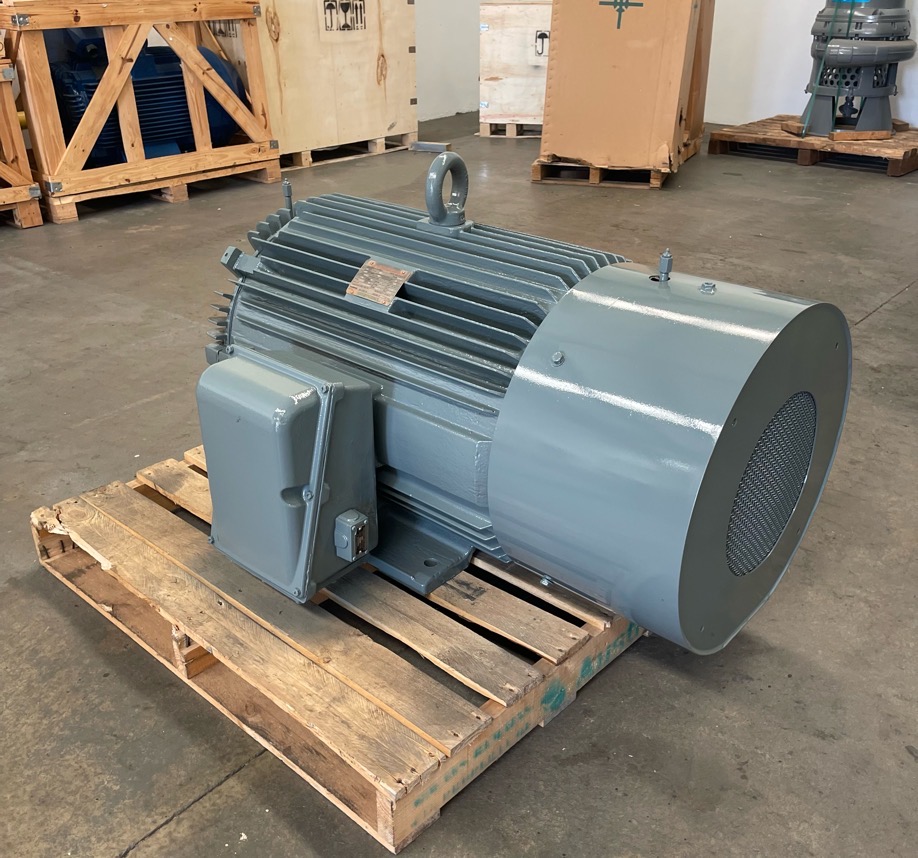

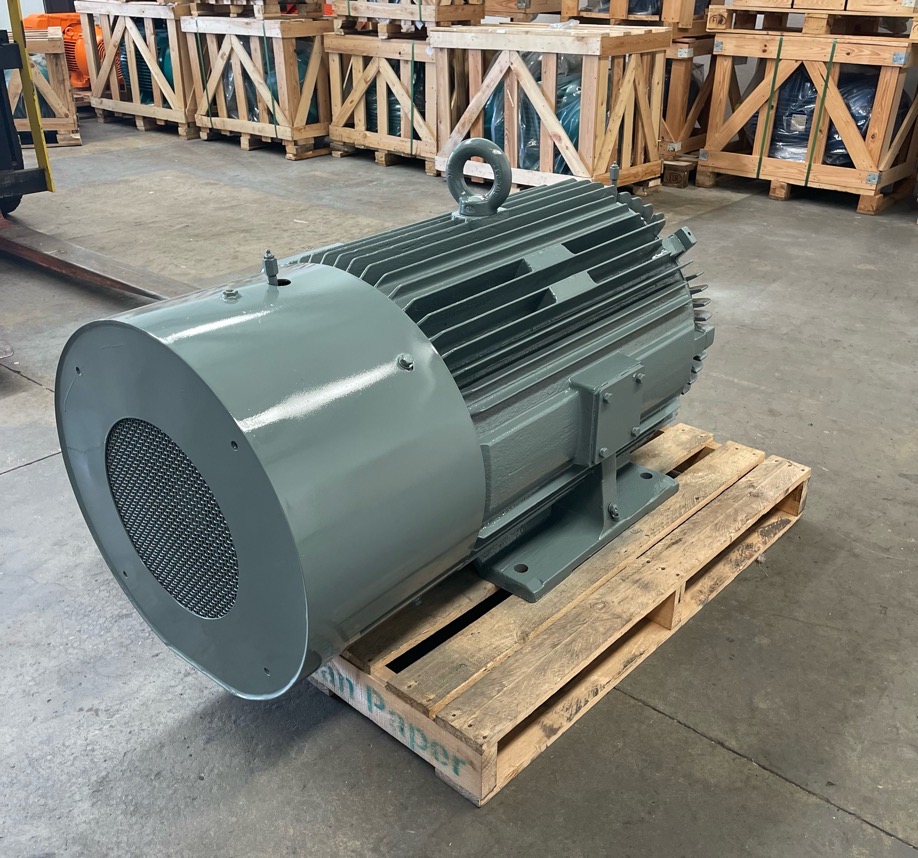

150 kw AC Electric Motor
200 hp, 4-pole, 415v, 315M frame, Toshiba < Back

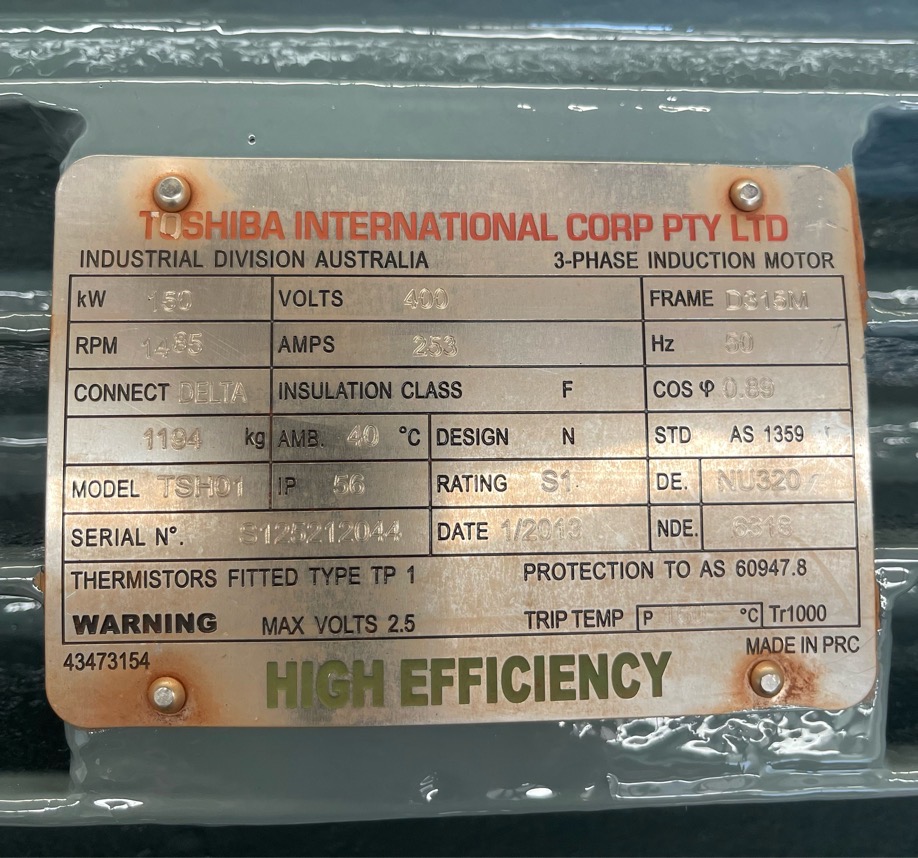

| Type | AC Electric Motor |
| Make | Toshiba |
| Model Number | TSH-01 |
| Year Of Manufacture | 2013 |
| KW | 150 |
| HP | 200 |
| Poles | 4 |
| Rated RPM | 1485 |
| Rated Frequency | 50 hz |
| Rated Voltage | 400 v |
| F/L Amps | 253 A |
| Protection Rating | IP56 Mining |
| Mount | B3 Foot |
| Frame | D315M |
| Weight | 1194 kg |
| Total Length | 1400 mm (incl. shaft) |
| Total width | 950 mm (incl. RHS to D.E. Terminal Box) |
| Total height | 750 mm |
| Centre shaft height | 315 mm |
| Feet Measurements | Across 'A' - 500 mm, Front to Back 'B' - 450 mm |
| Front hole to end of shaft | approx. 210mm |
| Shaft diameter | 90 mm |
| Shaft length | 170 mm |
| Notes | Incl. Drive-end Roller Bearing (for belt-driven application) |
| Insulation Class | F |
| Quantity | 1 |
| Condition | Unused - Decommissioned Critical Spare. N/L Test run & painted AUG 2023 |
