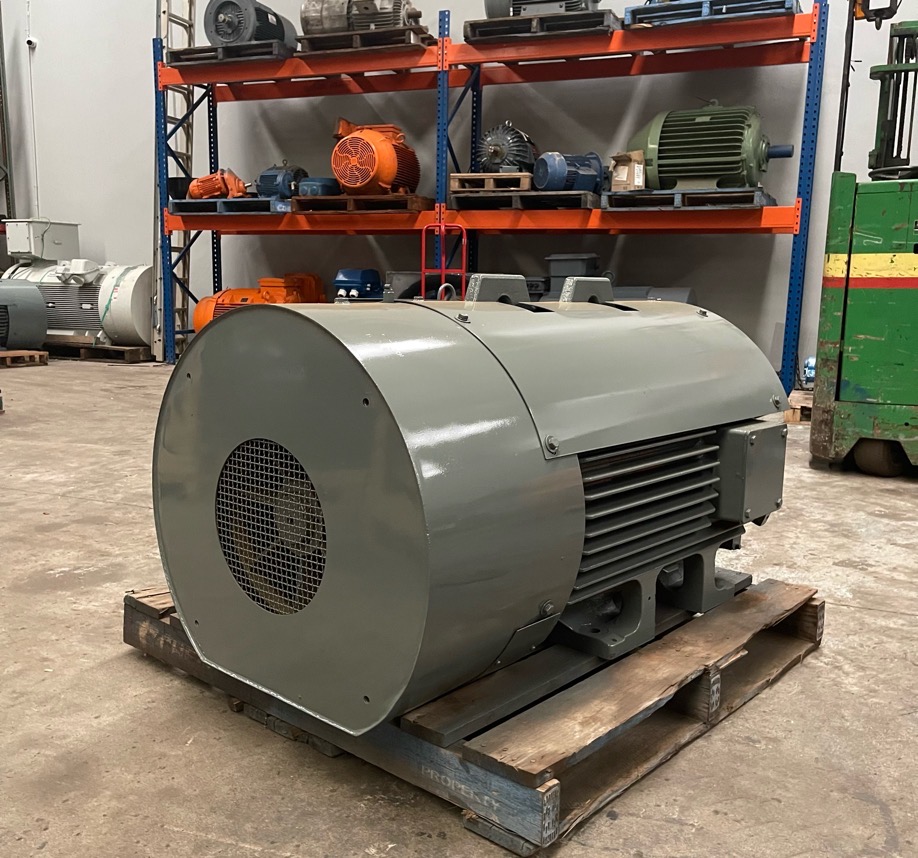

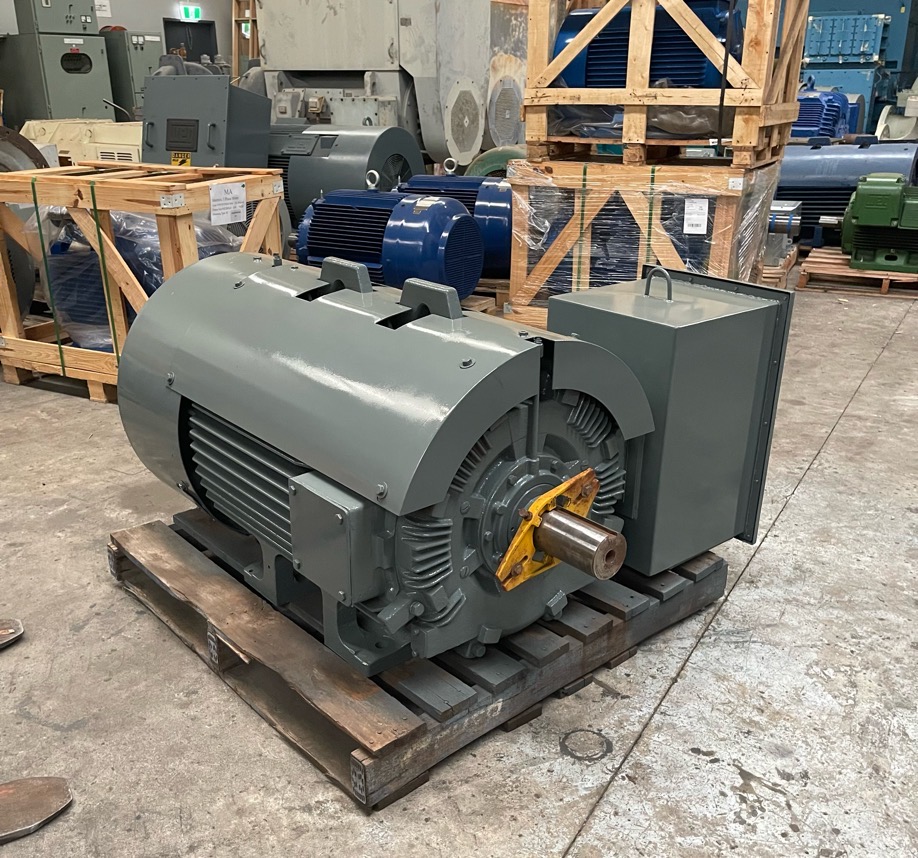

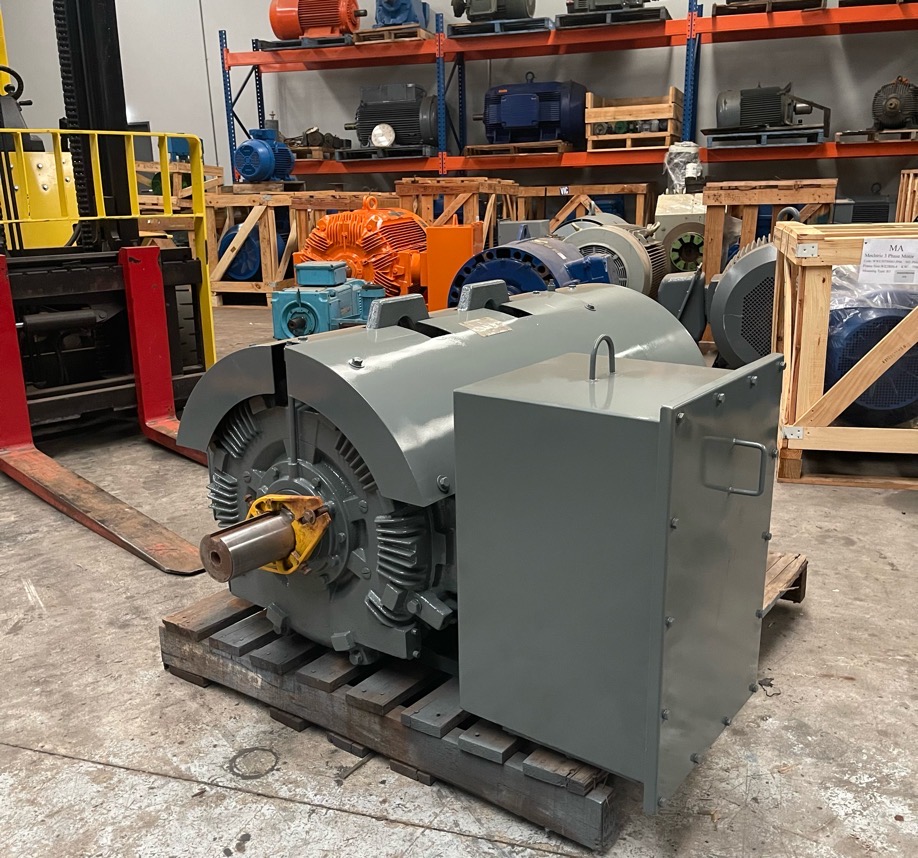

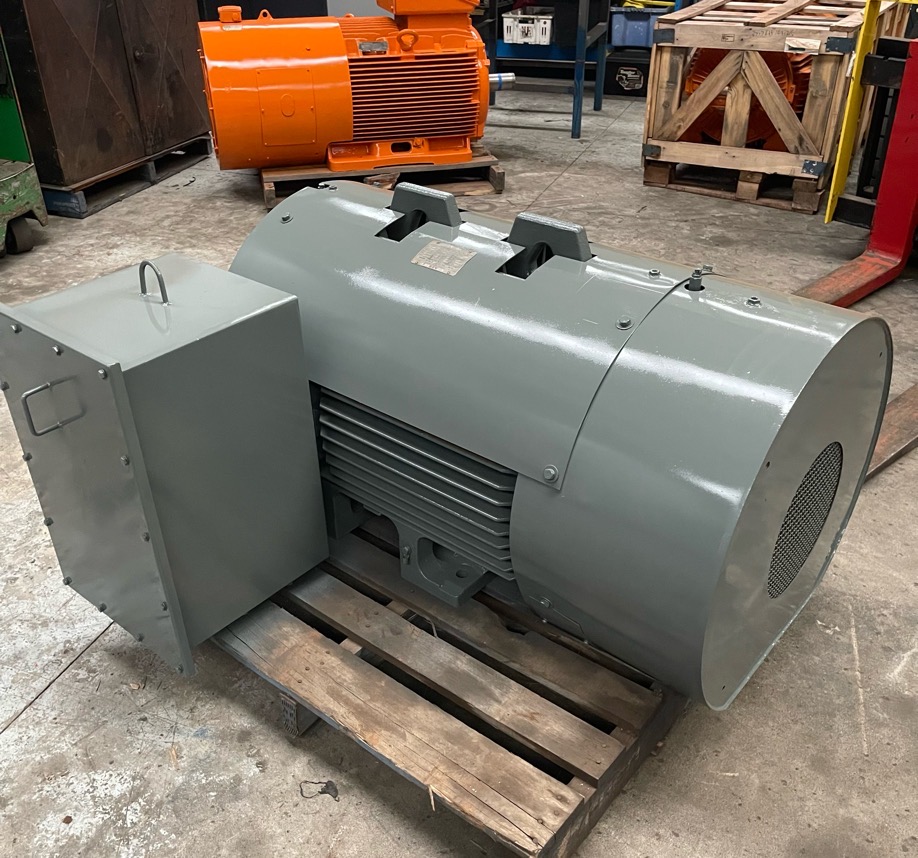

185 kw AC Electric Motor
250 hp, 4 pole, 415v, 315M frame, Toshiba < Back
| Type | AC Electric Motor |
| Make | Toshiba |
| Model Number | TKEH-FBKW4 |
| Year Of Manufacture | 2012 |
| KW | 185 |
| HP | 250 |
| Poles | 4 |
| Rated RPM | 1485 |
| Rated Frequency | 50 hz |
| Rated Voltage | 415 v |
| F/L Amps | 310 A |
| Protection Rating | IP 55 |
| Mount | B3 Foot |
| Frame | D315M |
| Weight | 1600 kg |
| Total Length | 1450 mm (incl. shaft) |
| Total width | 1200 mm (incl RHS box) |
| Total height | 800 mm |
| Centre shaft height | 315 mm |
| Feet Measurements | 460 mm Front to Back, 460 mm Across |
| Shaft diameter | 95 mm |
| Shaft length | 170 mm |
| Notes | Incl. Mining Cover |
| Quantity | 1 |
| Condition | Unused - Decommissioned Critical Spare. N/L Test run & painted June 2023 |
