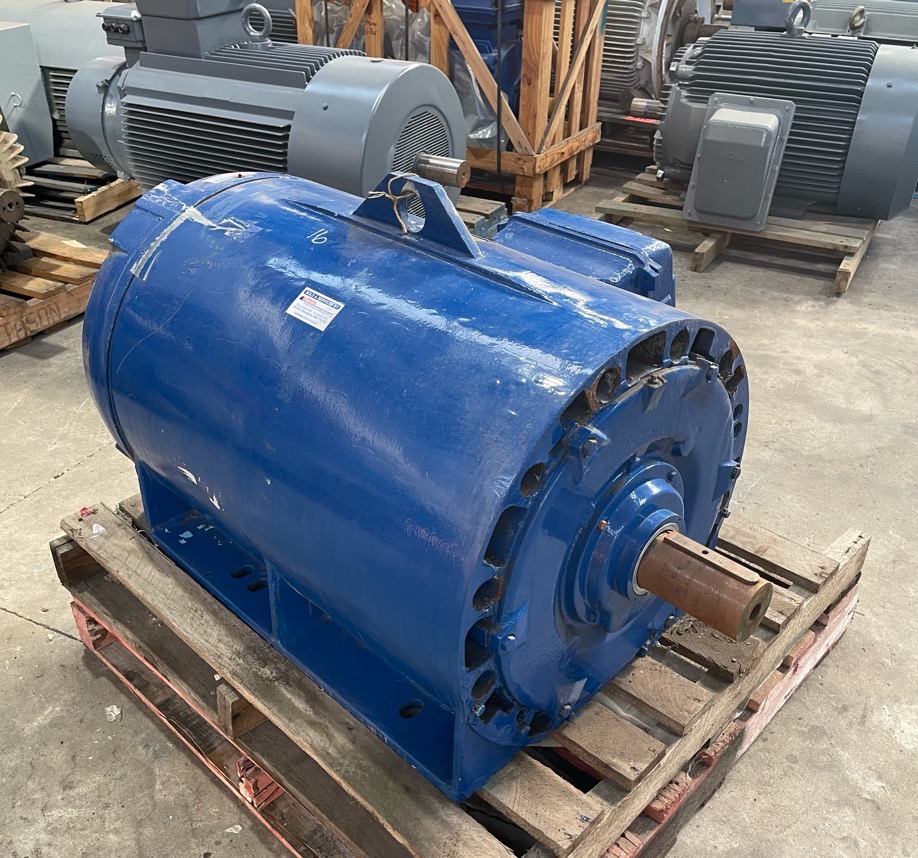

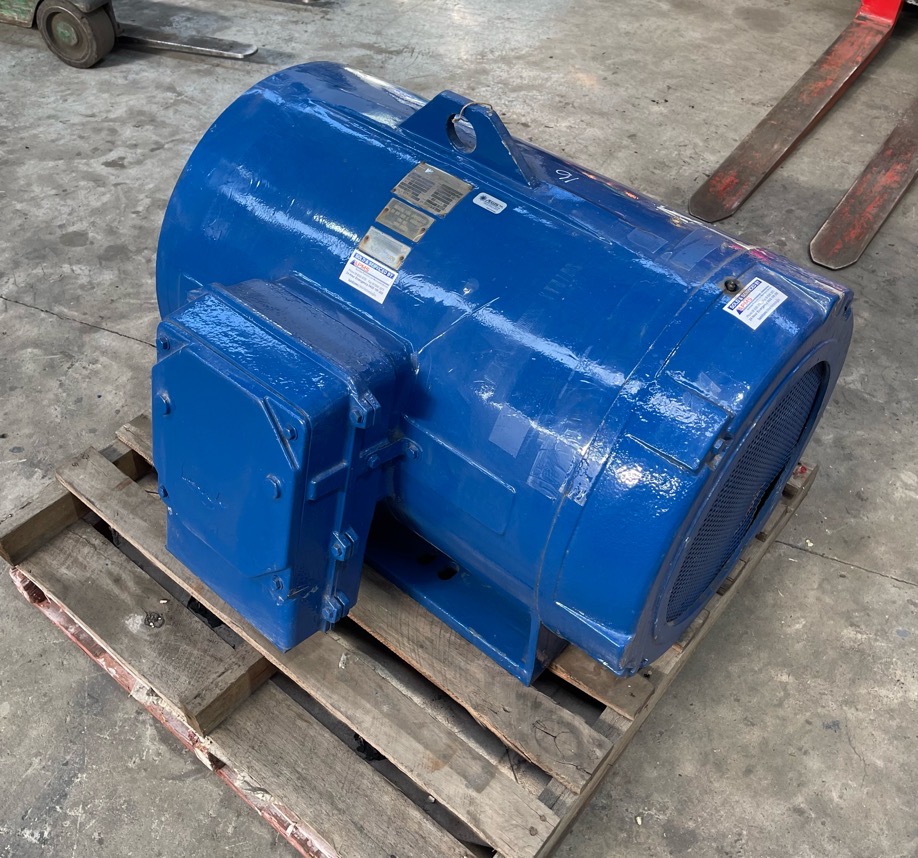

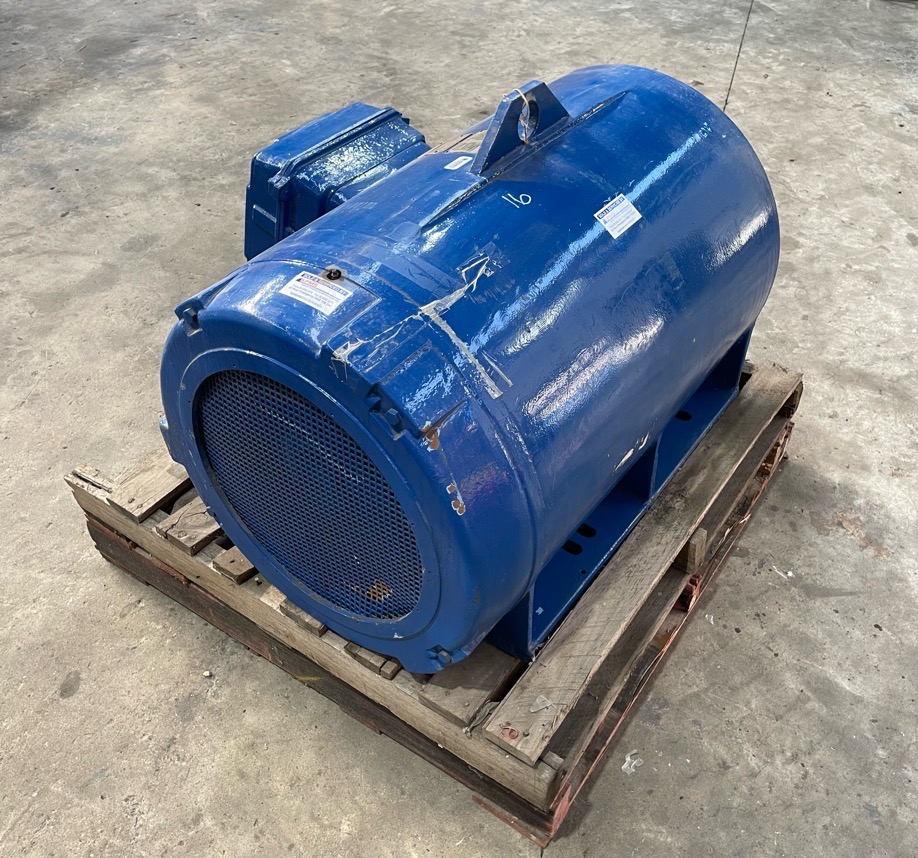

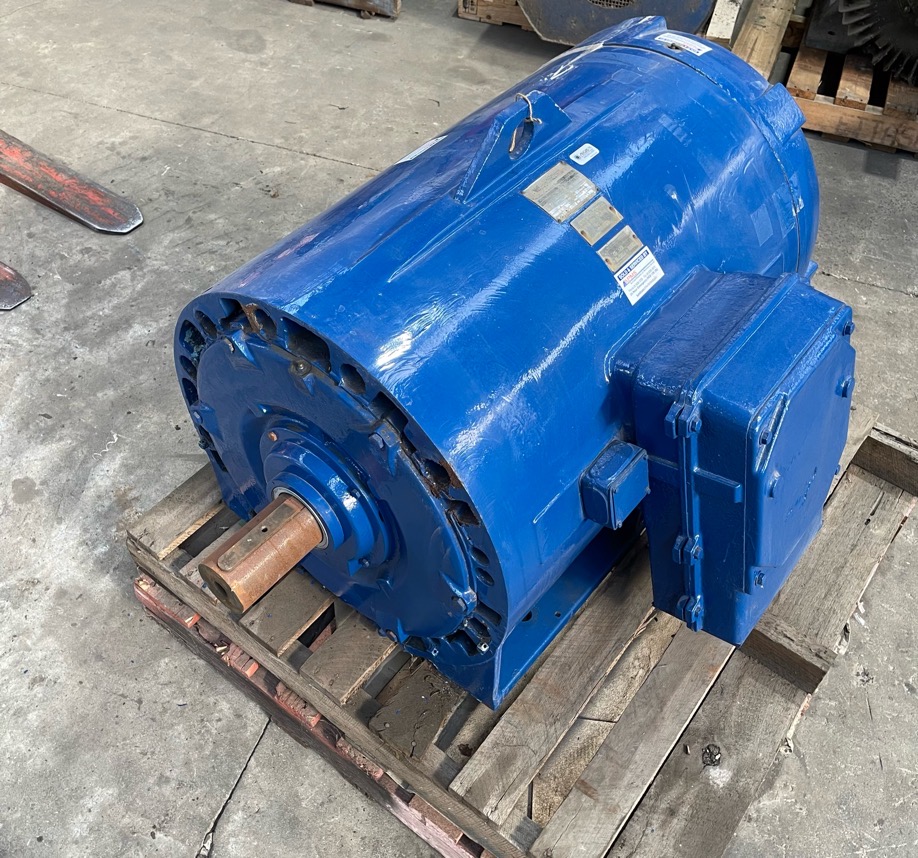

200 kw AC Electric Motor
270 hp, 4 pole, 415v, 315M frame, Mining < Back

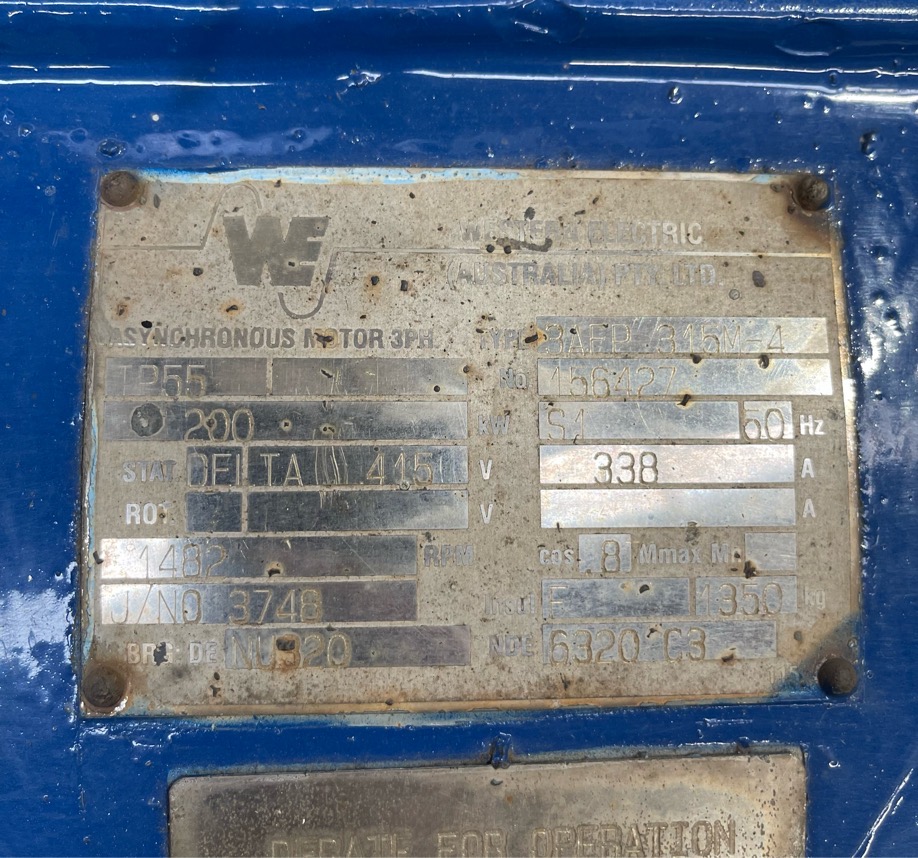

| Type | AC Electric Motor |
| Make | Western Electric Australia |
| Model Number | 3AFP 315M-4 |
| KW | 200 |
| HP | 270 |
| Poles | 4 |
| Rated RPM | 1482 |
| Rated Frequency | 50 hz |
| Rated Voltage | 415v |
| F/L Amps | 338 A |
| Protection Rating | Mining |
| Mount | B3 Foot |
| Frame | 315M |
| Weight | 1350 kg |
| Centre shaft height | 315 mm |
| Shaft diameter | 90 mm |
| Shaft length | 170 mm |
| Notes | Includes front roller bearing |
| Quantity | 1 |
| Condition | Decommissioned Critical Spare, electrically OK VGC |
