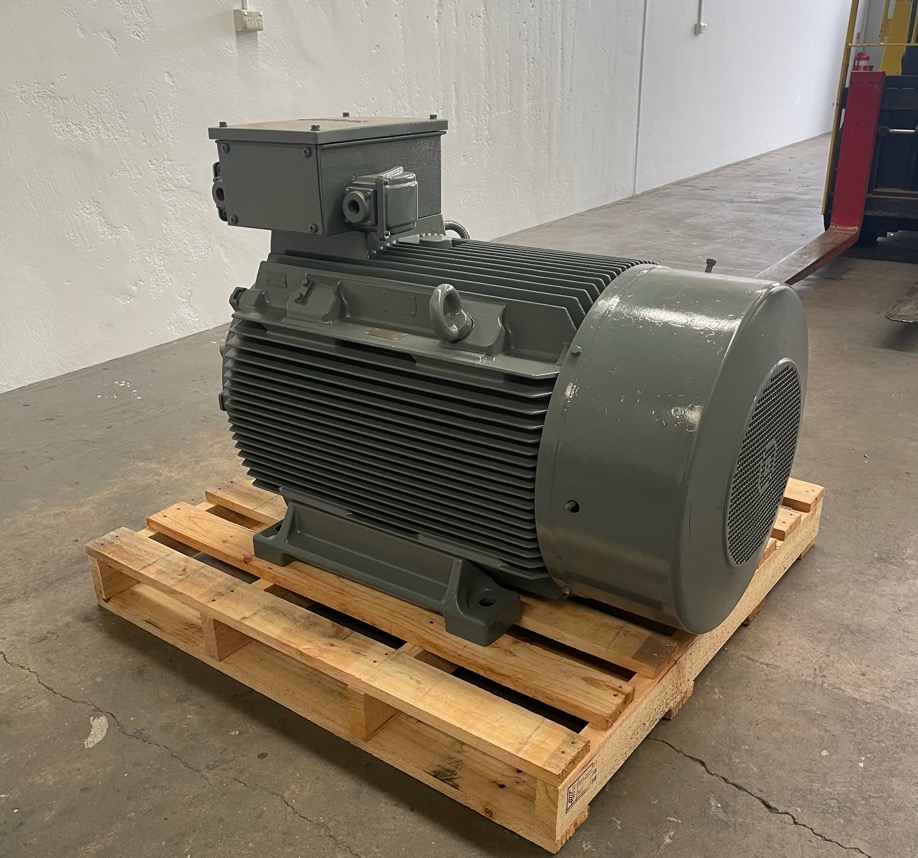

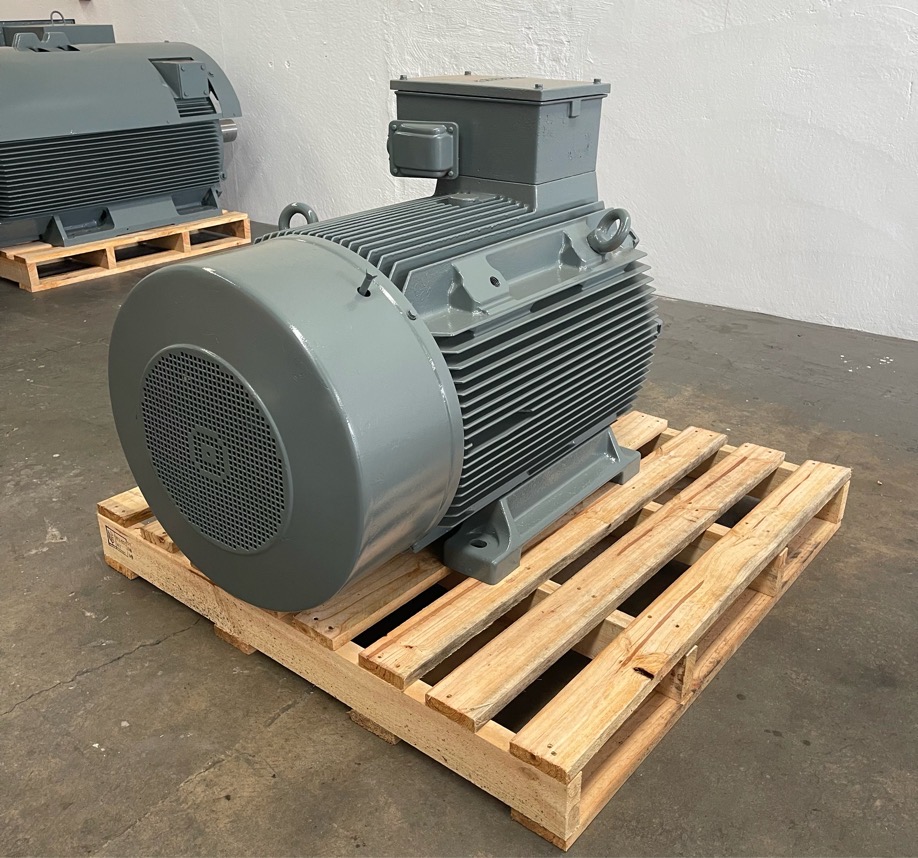

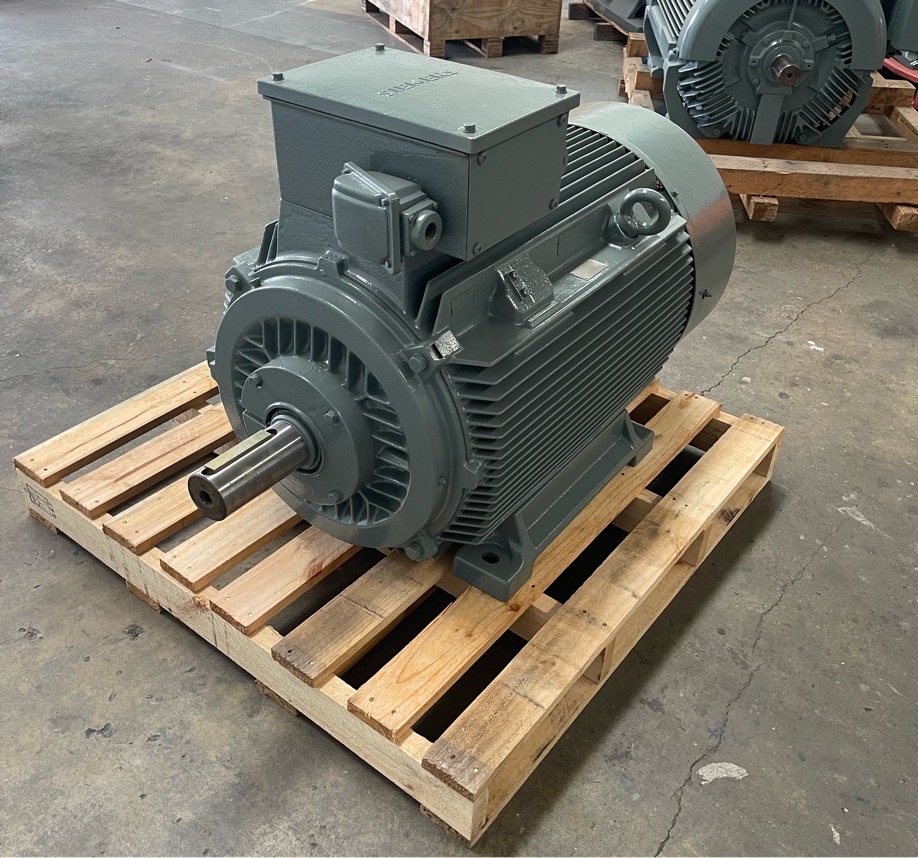

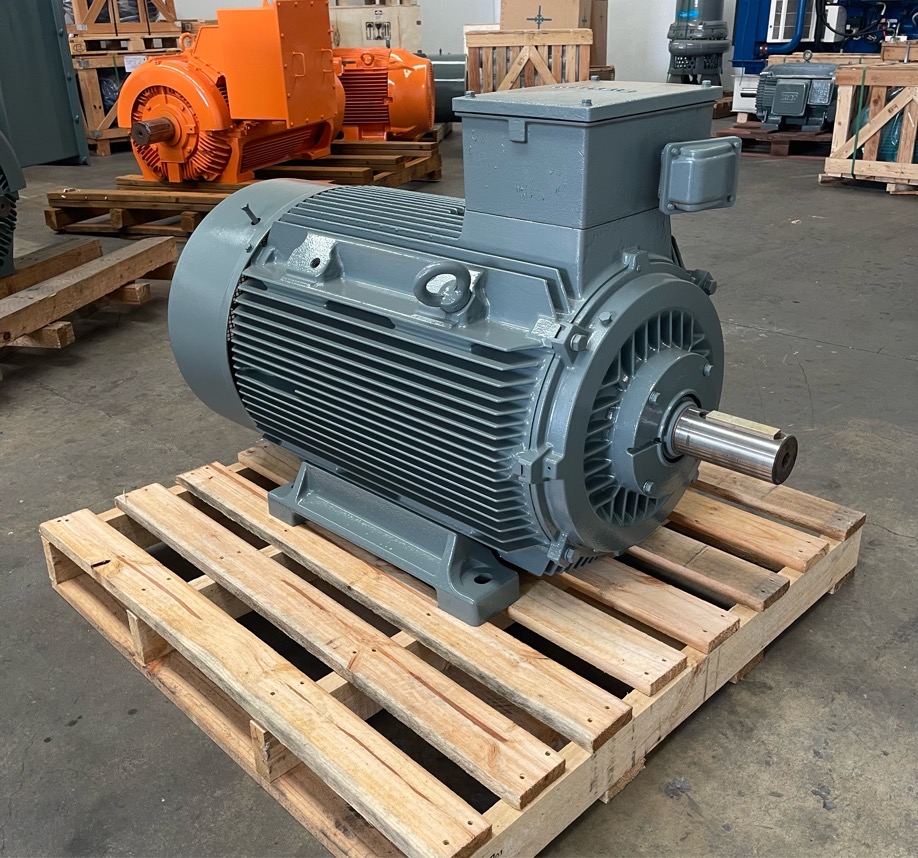

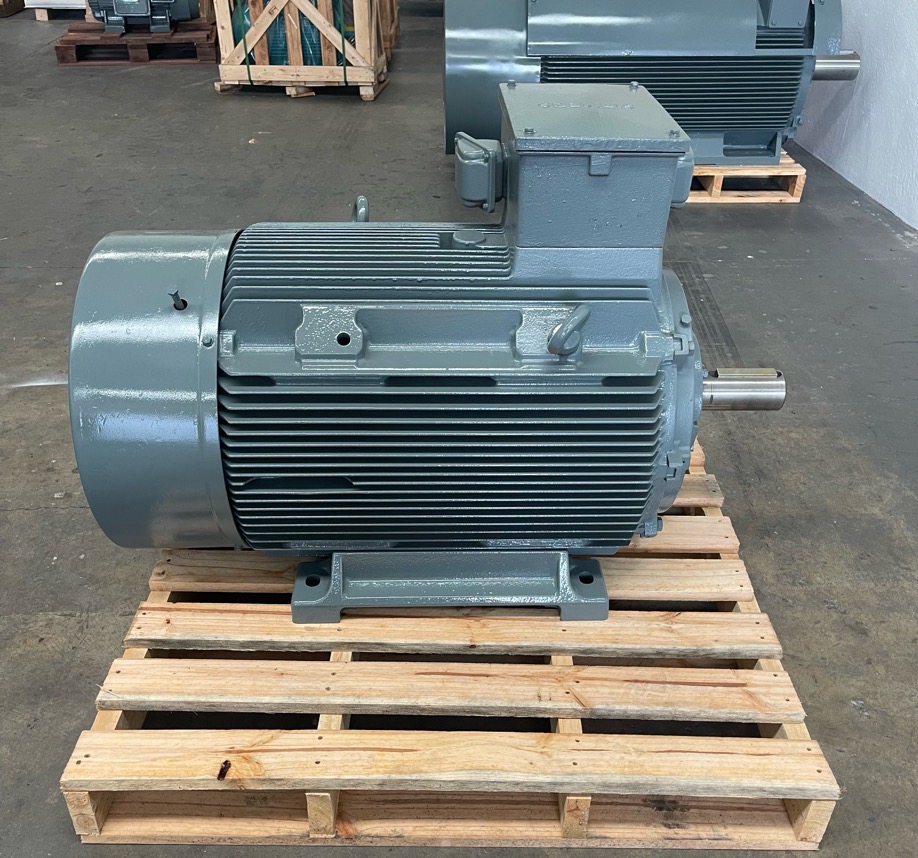

200 kw AC Electric Motor
270 hp, 4-pole, 415v, 315L frame, Siemens < Back
| Type | AC Electric Motor |
| Make | Siemens |

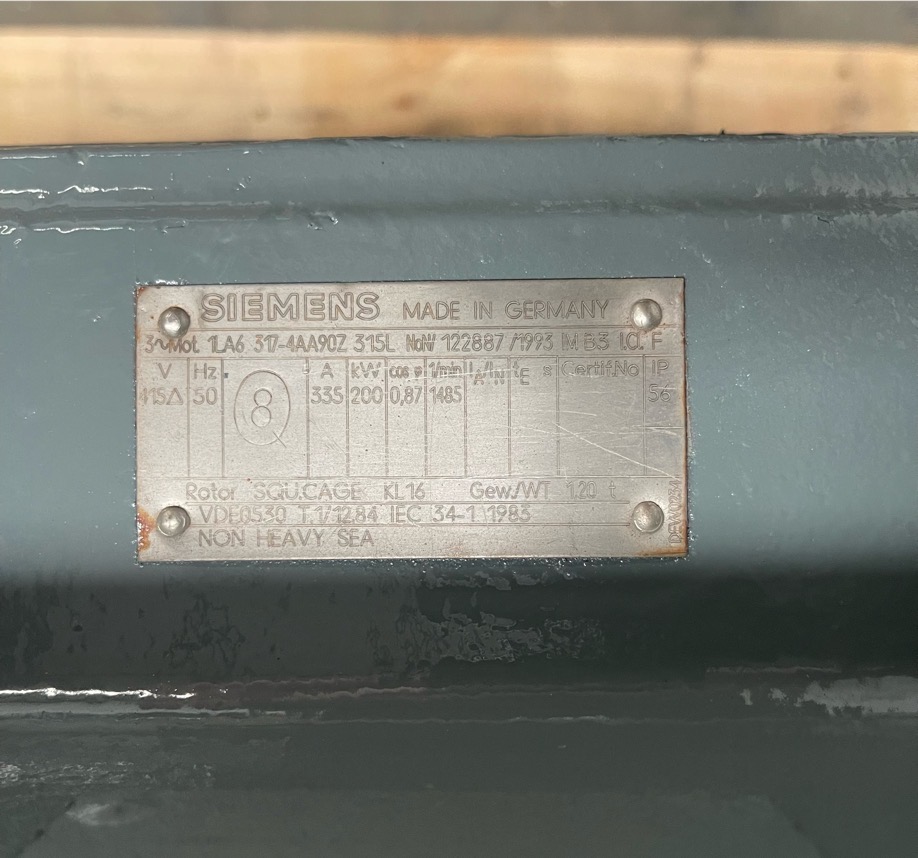

| Model Number | 1LA6 317-4AA90Z 315L |
| Manufacture origin | Germany |
| KW | 200 |
| HP | 270 |
| Poles | 4 |
| Rated RPM | 1485 |
| Rated Frequency | 50 Hz |
| Rated Voltage | 415 |
| F/L Amps | 335 A |
| Protection Rating | IP56 |
| Mount | B3 Foot |
| Frame | 315L |
| Weight | 1200 kg |
| Total Length | 1230 mm (incl. shaft) |
| Total width | 620 mm |
| Total height | 830 mm (incl. top mount box) |
| Centre shaft height | 315 mm |
| Feet Measurements | Front to Back 510 mm, Across 510 mm |
| Front hole to end of shaft | Approx. 225 mm |
| Shaft diameter | 80 mm |
| Shaft length | 170 mm |
| Notes | Includes Thermistors. Drive-end roller bearing (for belt-driven application) |
| Quantity | 1 |
| Condition | Fully reconditioned, decommissioned critical spare. New bearings (front roller), N/L test run & Paint in motor workshop Aug'2023 |
