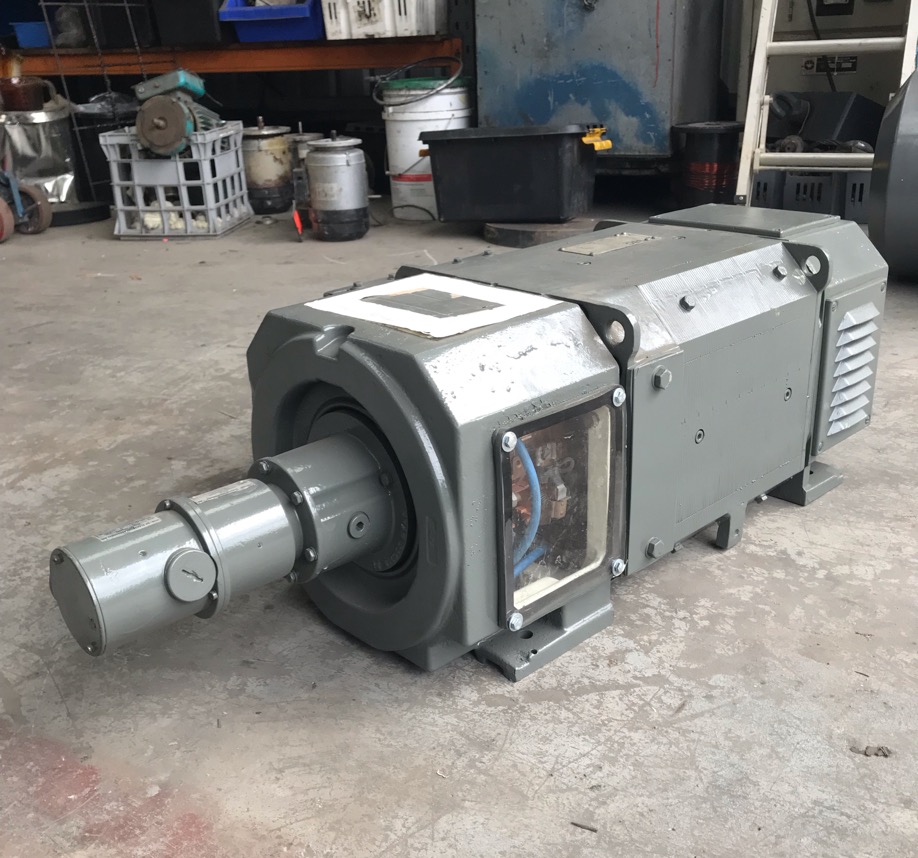

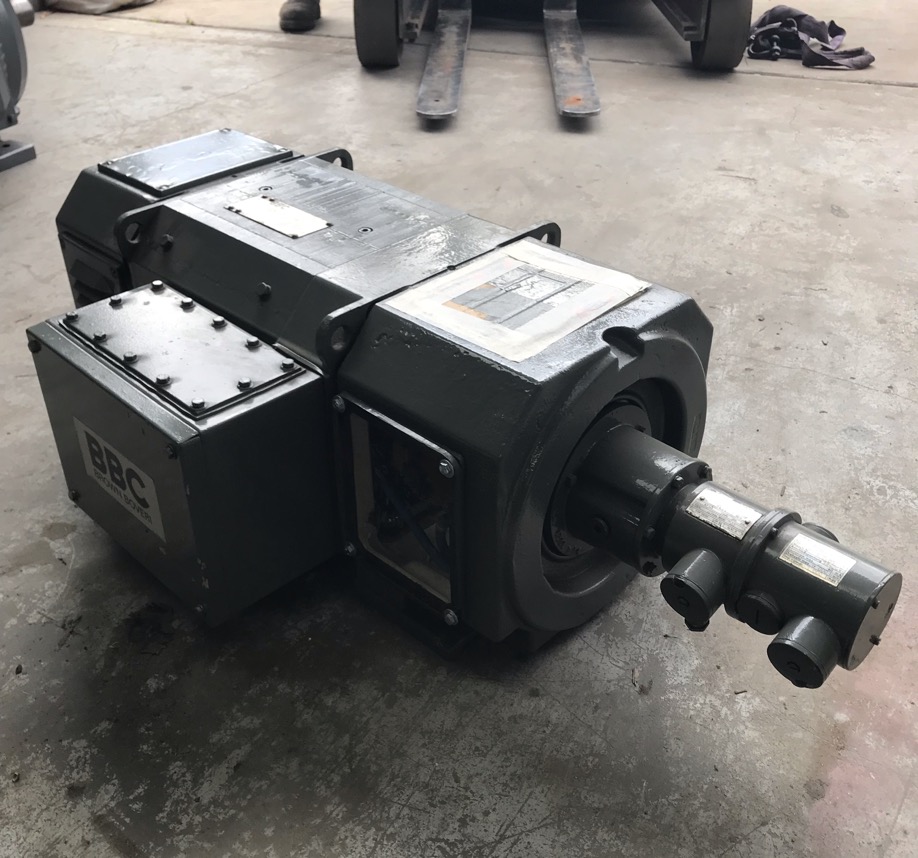

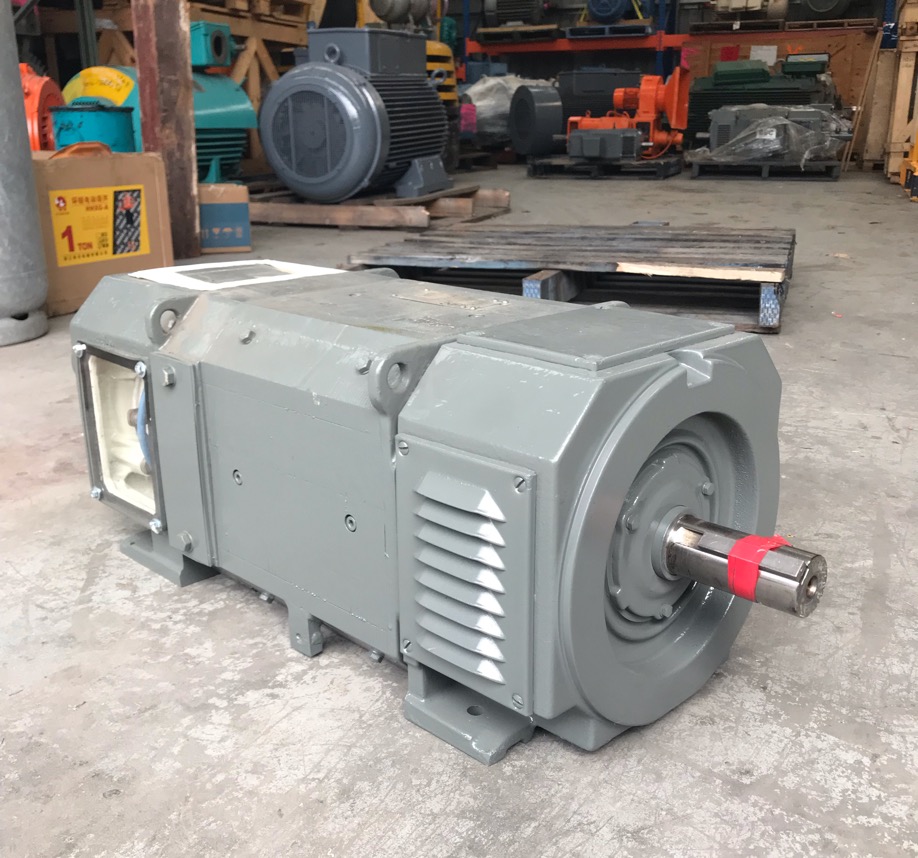

28.5 kw DC Electric Motor
40 hp, 1096 rpm, 440 volt, 160 frame < Back

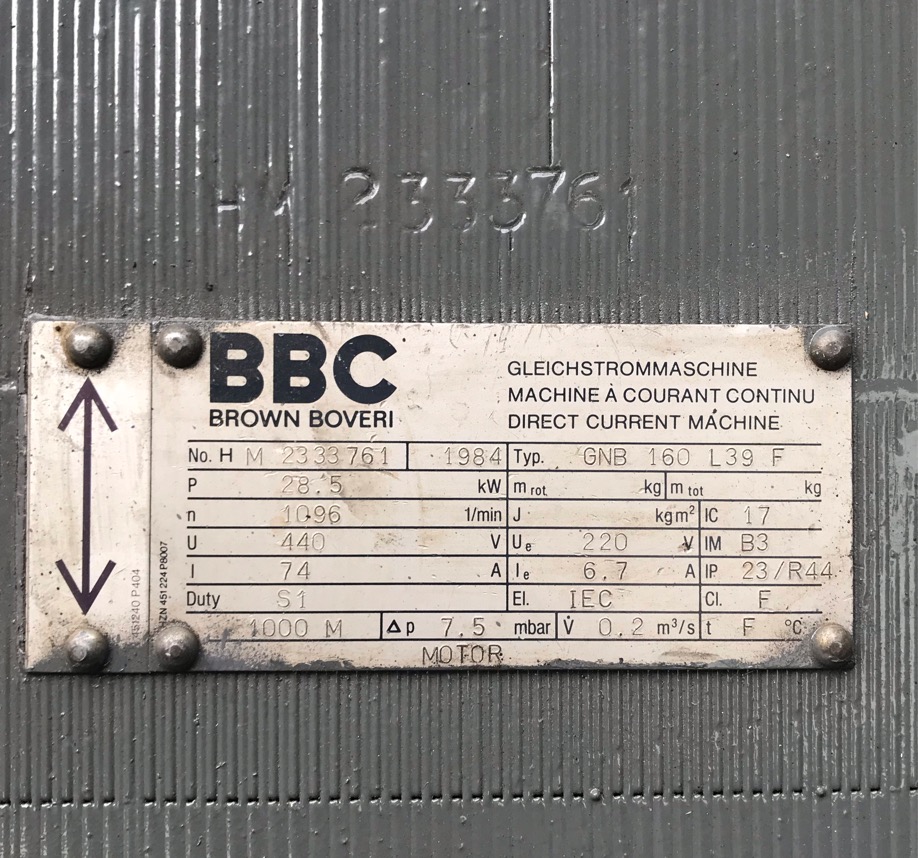

| Type | DC Electric Motor |
| Make | BBC Brown Boveri |
| Model Number | GNB 160 L39 F |
| KW | 28.5 |
| HP | 40 |
| Rated RPM | 1096 |
| Rated Voltage | 440 |
| F/L Amps | 74 |
| Protection Rating | IP 23 |
| Mount | B3 Foot |
| Frame | 160 |
| Total Length | 1100 mm inc. shaft & tacho |
| Total width | 480 mm inc. box |
| Total height | 320 mm |
| Feet Measurements | 520 mm front to back, 255 mm acorss |
| Shaft diameter | 48 mm |
| Shaft length | 110 mm |
| Notes | Field Volts 220 Amps 6.7 |
| Quantity | 1 |
| Condition | Fully Reconditioned |
