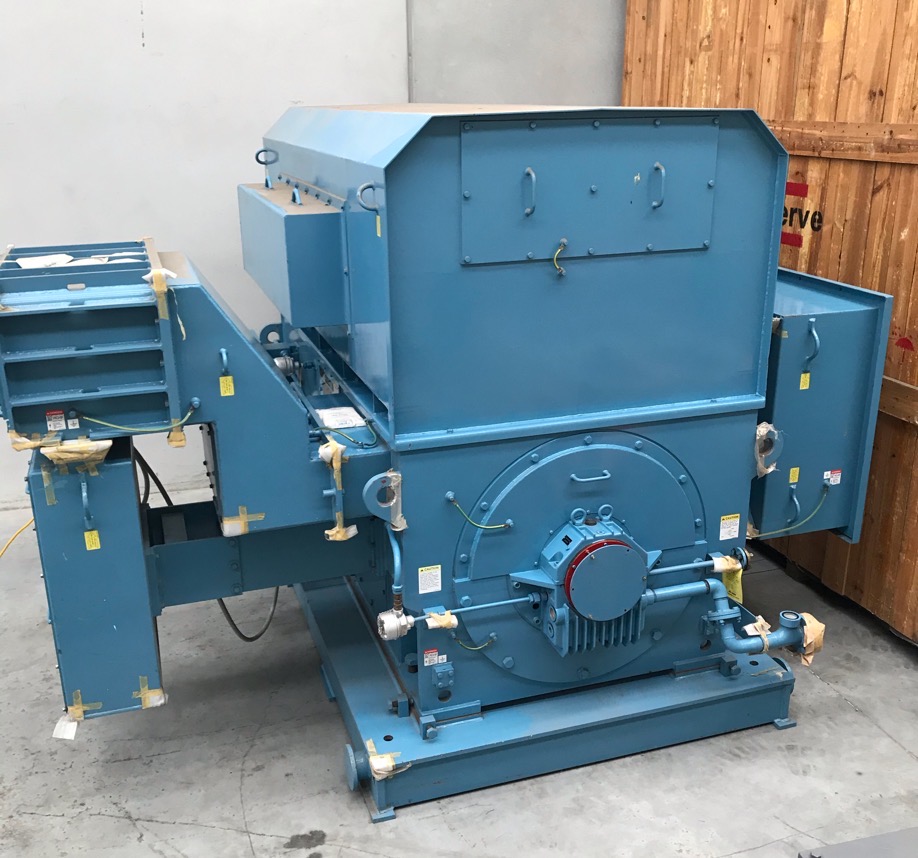

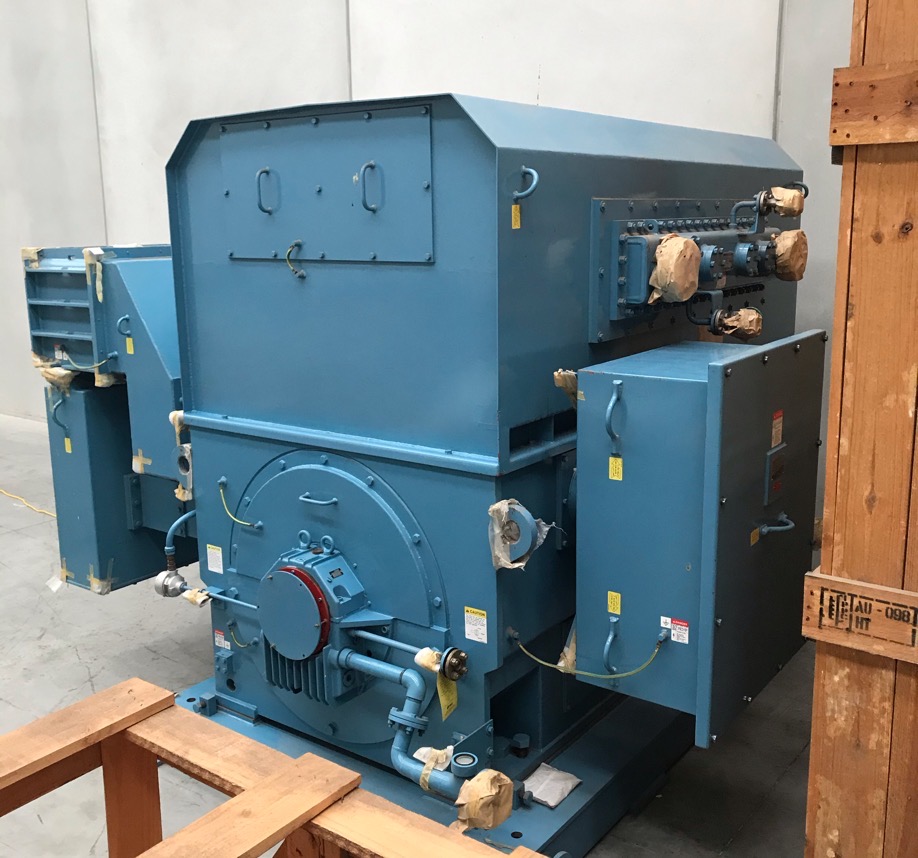

4150 kw AC Electric Motor
5500 hp, 4 pole, 6600 volt, Exe Rated < Back
| Type | AC Electric Motor |
| Make | Toshiba |
| Model Number | TIKE-RCCNW |
| Year Of Manufacture | 2011 |
| KW | 4150 |
| HP | 5500 |
| Poles | 4 |
| Rated RPM | 1480 |
| Rated Frequency | 50 |
| Rated Voltage | 6600 |
| F/L Amps | 416 |

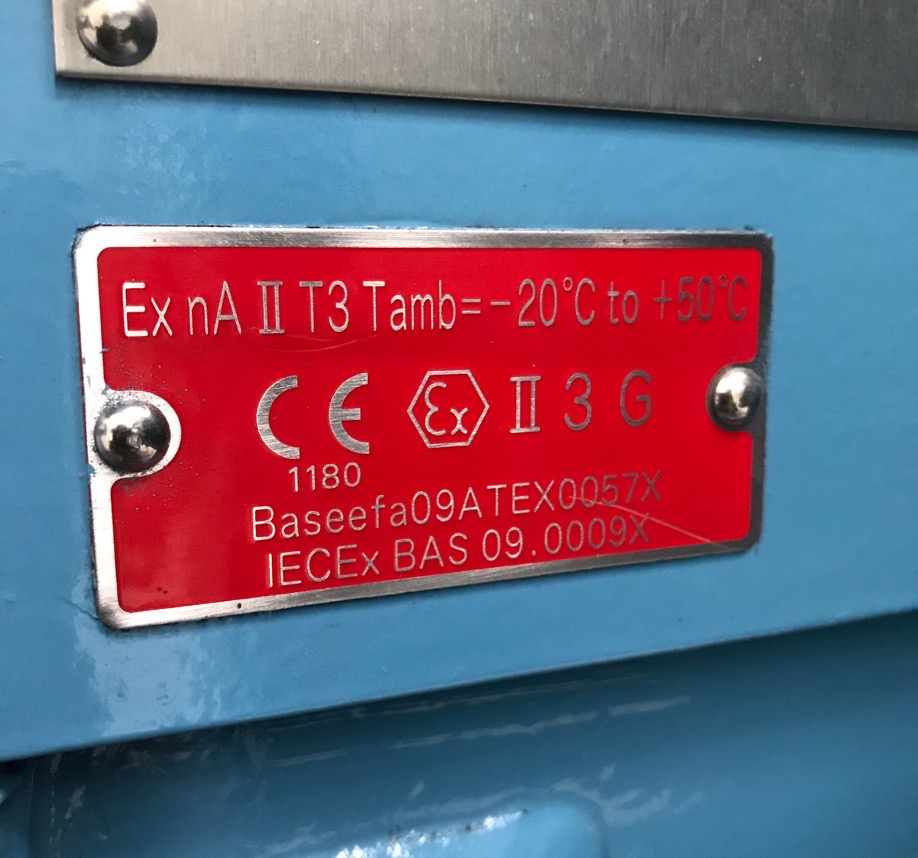

| Protection Rating | IP 55 Hazardous Area: Ex e IIC |
| Mount | B3 Foot |
| Frame | 560 |
| Weight | 14,500 kg |
| Total Length | 3325 mm |
| Total width | 3215 mm |
| Total height | 2370 mm |
| Centre shaft height | 560 mm |
| Feet Measurements | 2000 mm Front to Back |
| Shaft diameter | 200 mm |
| Shaft length | 220 mm |
| Notes | Drawings / Data Full manual available on request |
| Frame Number | 560-2000 |
| Quantity | 1 |
| Condition | New / Unused |
