515 kw DC Electric Motor
690 hp, 1545 rpm, 355 frame, 600 volt < Back
| Type | DC Electric Motor |

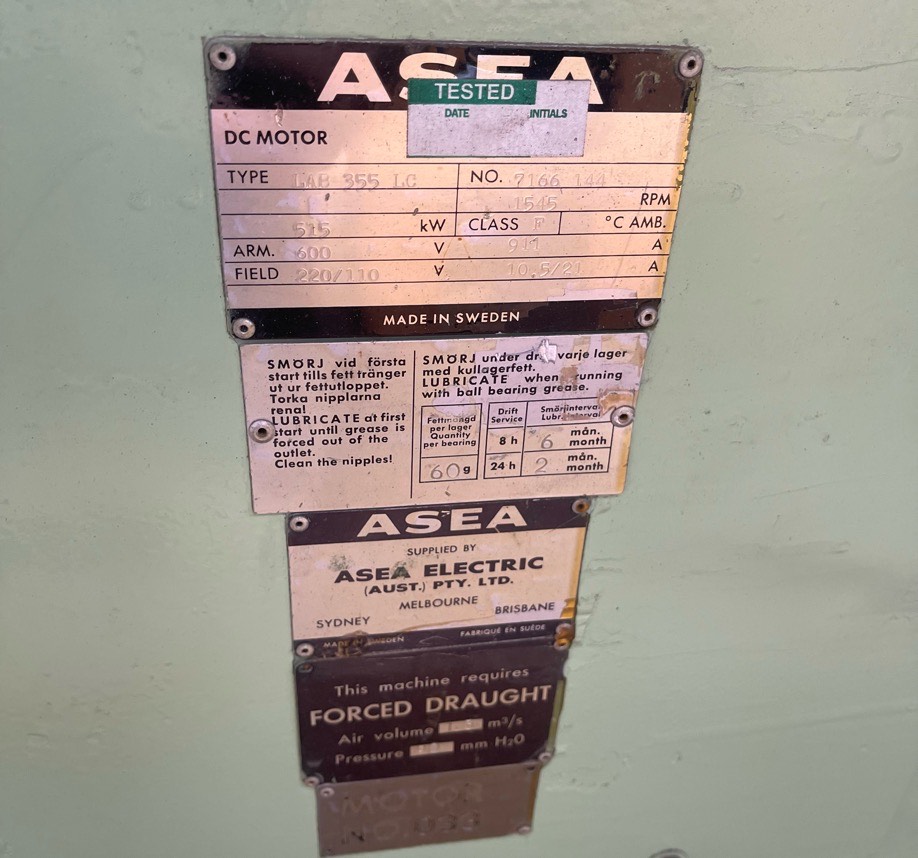

| Make | ASEA |
| Model Number | LAB 355 LC |
| KW | 515 |
| HP | 690 |
| Rated RPM | 1545 |
| Rated Voltage | 600 |
| F/L Amps | 911 |
| Protection Rating | IP 23 |
| Mount | B3 Foot |
| Frame | 355 |
| Weight | approx. 2500 kg |
| Total Length | 1560 mm (incl. shaft) |
| Total width | 940 mm (incl. lifting points) |
| Total height | 930 mm (incl. top mount box) |
| Centre shaft height | 355 mm |
| Shaft diameter | 110 mm |
| Shaft length | 210 mm |
| Notes | Field Volts 220, Field Amps 10.5 |
| Quantity | 1 |
| Condition | Full reconditioned critical spare, warehouse storage |
