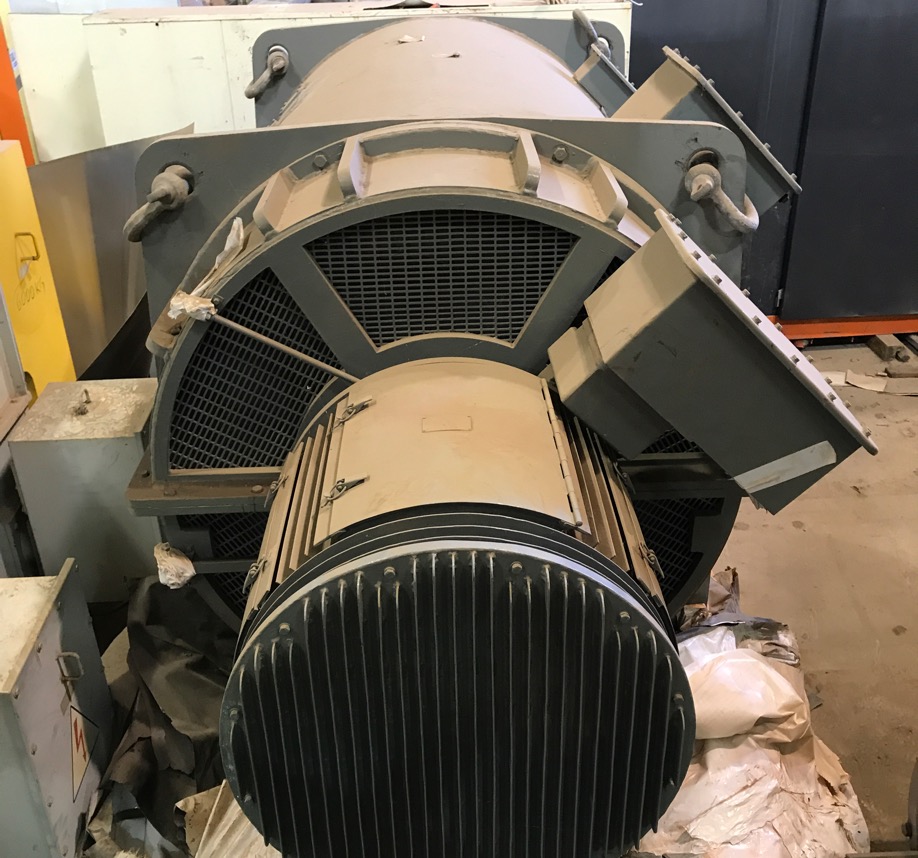

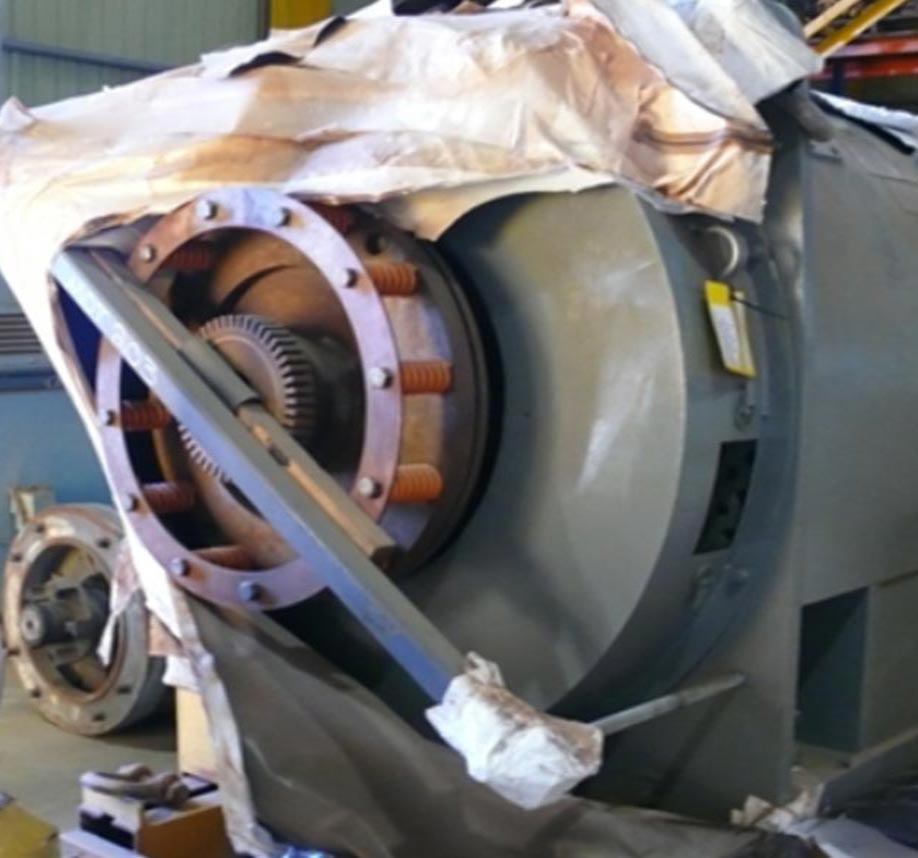

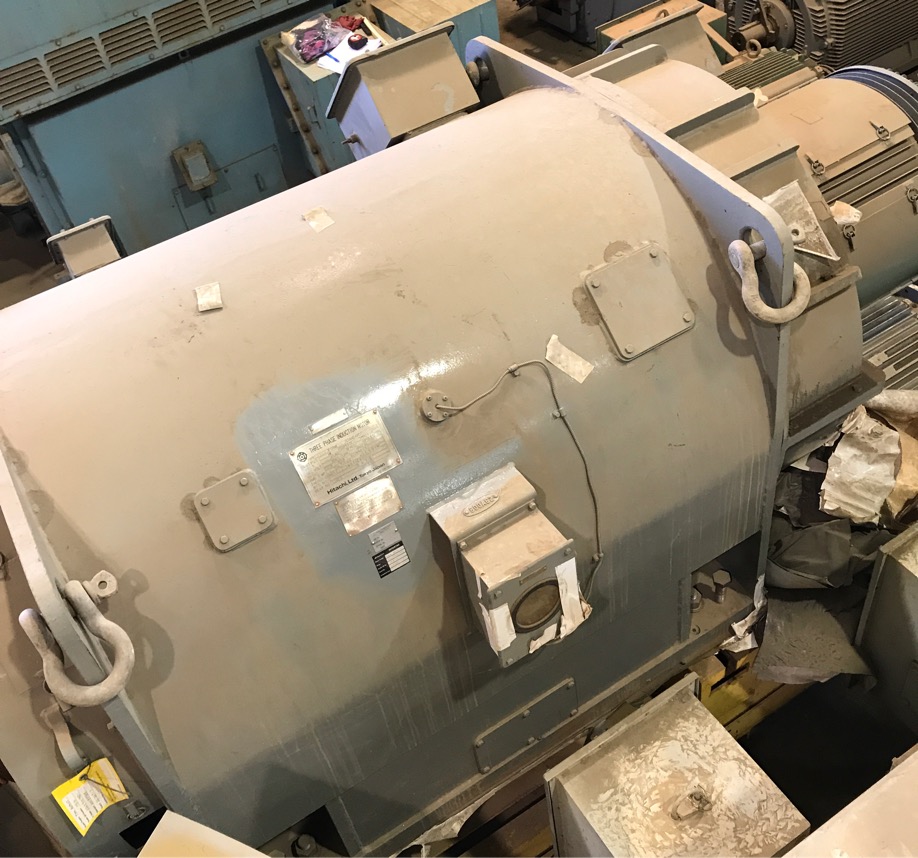

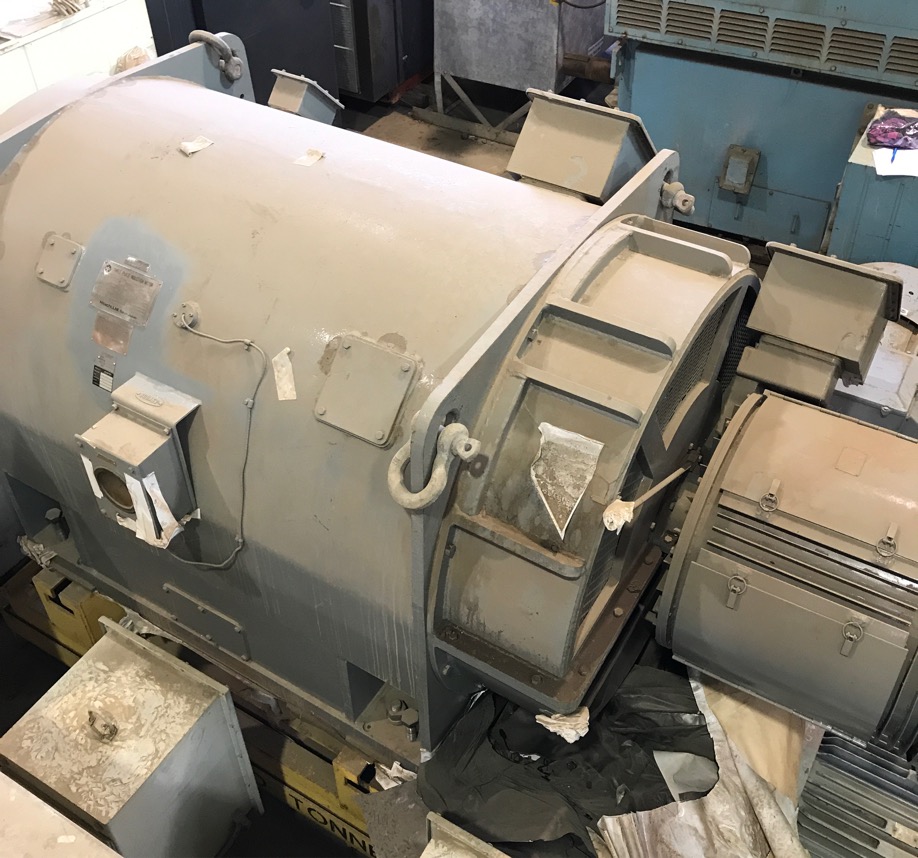

520 kw Slip Ring Electric Motor
700 hp, 4 pole, 3300 volt < Back
| Type | Slip Ring |
| Make | Hitachi |
| KW | 520 |
| HP | 700 |
| Poles | 4 |
| Rated RPM | 1475 |
| Rated Frequency | 50 |
| Rated Voltage | Primary 3300 v, Secondary 1244 v |
| F/L Amps | Primary 105 Amps, Secondary 255 Amps |
| Mount | B3 Foot |
| Frame | 710 |
| Total Length | 3150 mm |
| Total width | 1670 mm |
| Total height | 1450 mm |
| Centre shaft height | 710 mm |
| Feet Measurements | 1250 mm Front to Back, 1170 mm Across |
| Front hole to end of shaft | 580 mm |
| Shaft diameter | 110 mm |
| Shaft length | 320 mm |
| Quantity | 1 |
| Condition | Unused |
