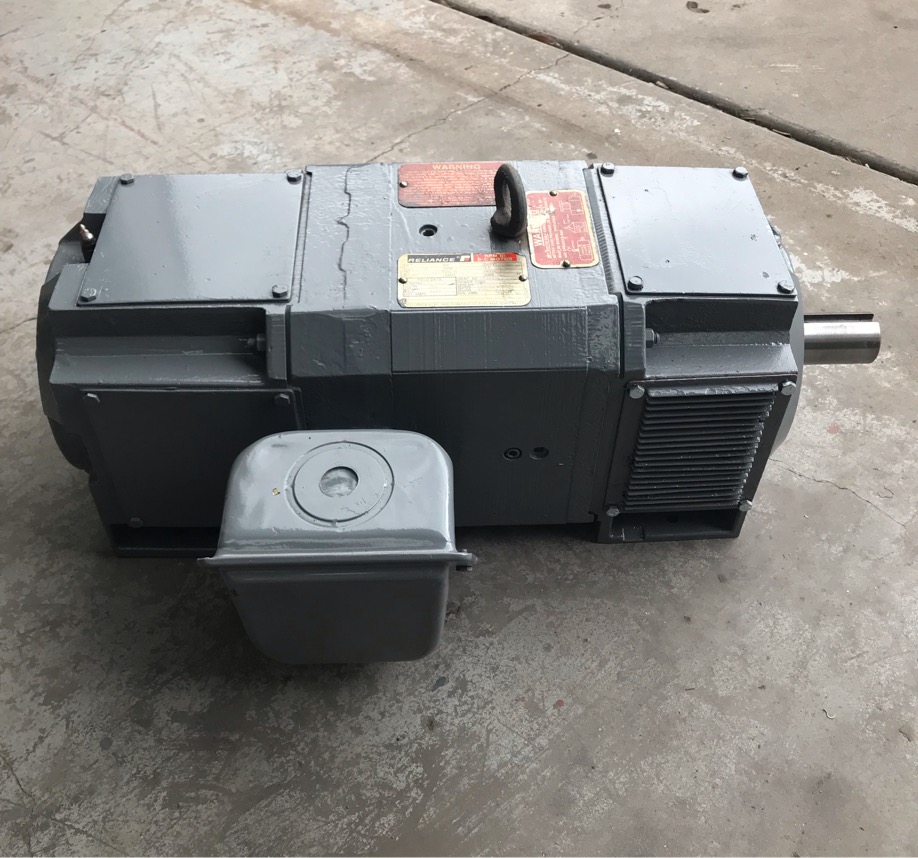

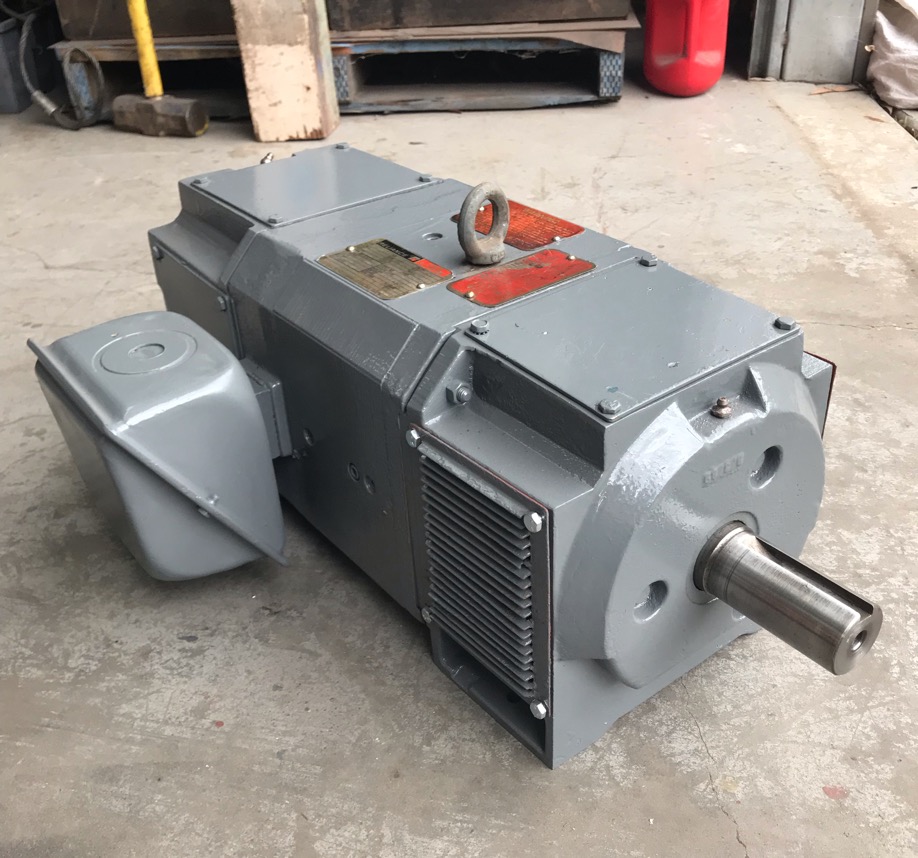

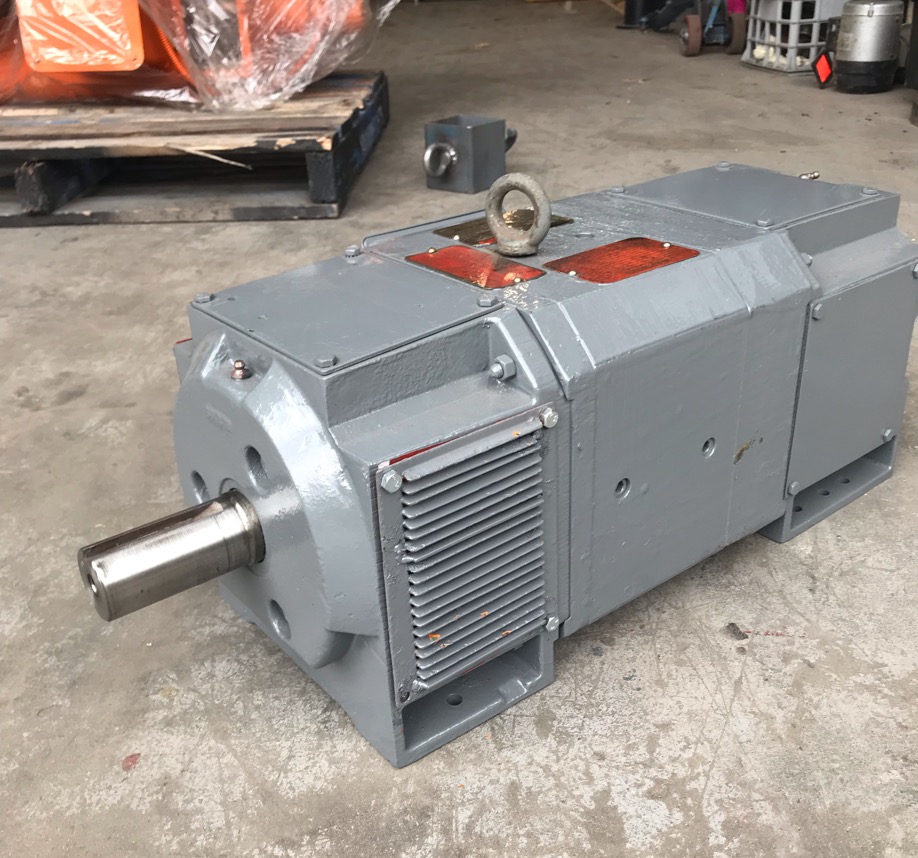

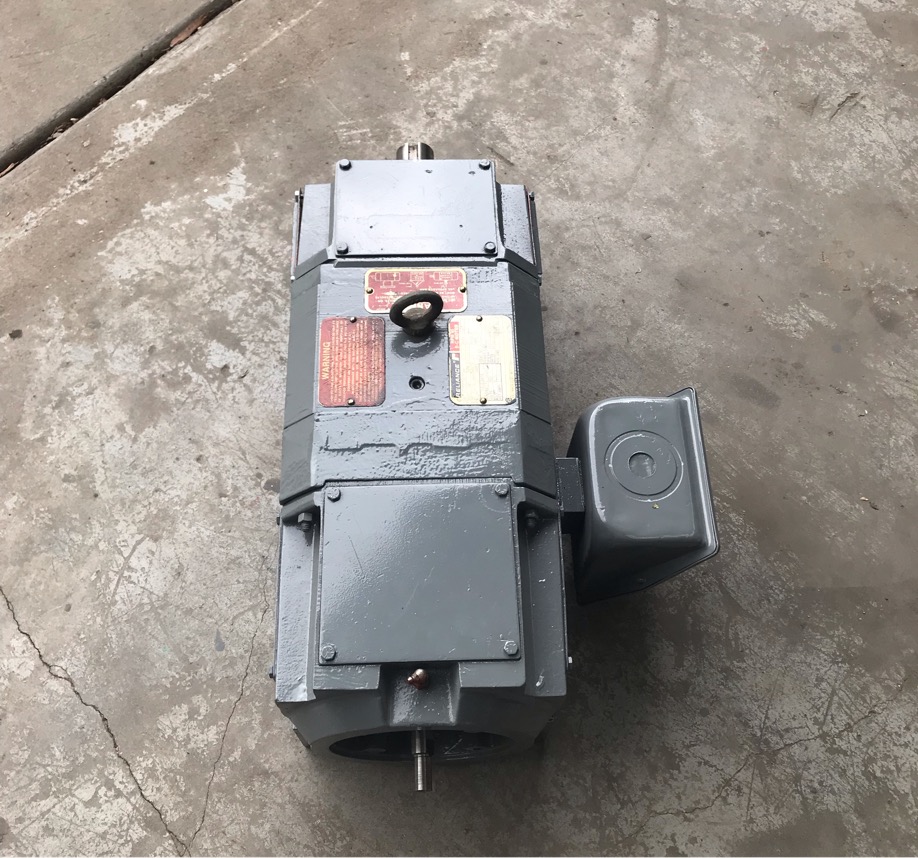

6.5 kw DC Electric Motor
9 hp, 1750 rpm, 180 volt < Back
| Type | DC Electric Motor |
| Make | Reliance |
| Model Number | SC2113ATZ |
| KW | 6.5 |
| HP | 9 |
| Rated RPM | 1750 |
| Rated Voltage | 180 |
| F/L Amps | 44.00 |
| Mount | B3 Foot |
| Total Length | 760 mm inc. shaft & provision for tacho |
| Total width | 425 mm inc. box |
| Total height | 270 mm |
| Centre shaft height | 134 mm |
| Feet Measurements | 15'' front to back (hole1) 16 & 5/8'' (hole 2) 17 amd 7/8'' (hole3 back), 8.5'' across |
| Shaft diameter | 1 and 7/8'' (47.5 mm) |
| Shaft length | 3 and 11/16'' (91.5 mm) |
| Notes | Field Volts 200 Amps 1.82 |
| Quantity | 1 |
| Condition | Fully Reconditioned |
