75 kw AC Electric Motor
100 hp, 6 pole, 415v, 280M, IP66, Teco < Back
| Type | AC Electric Motor |
| Make | Teco |
| Model Number | AEMBUCD40 |
| Year Of Manufacture | 2021 |
| KW | 75 |
| HP | 100 |
| Poles | 6 |
| Rated RPM | 984 |
| Rated Frequency | 50 hz |
| Rated Voltage | 415 v |
| F/L Amps | 132 A |
| Protection Rating | IP 66 |
| Mount | B3 Foot |
| Frame | D280M |
| Weight | 760 kg |
| Total Length | 1092 mm (incl. shaft) |
| Total width | 893 mm (incl. RHS Box) |
| Total height | 651 mm |
| Centre shaft height | 280 mm |
| Feet Measurements | Front to Back 419 mm, Across 457 mm |
| Front hole to end of shaft | 190 mm |

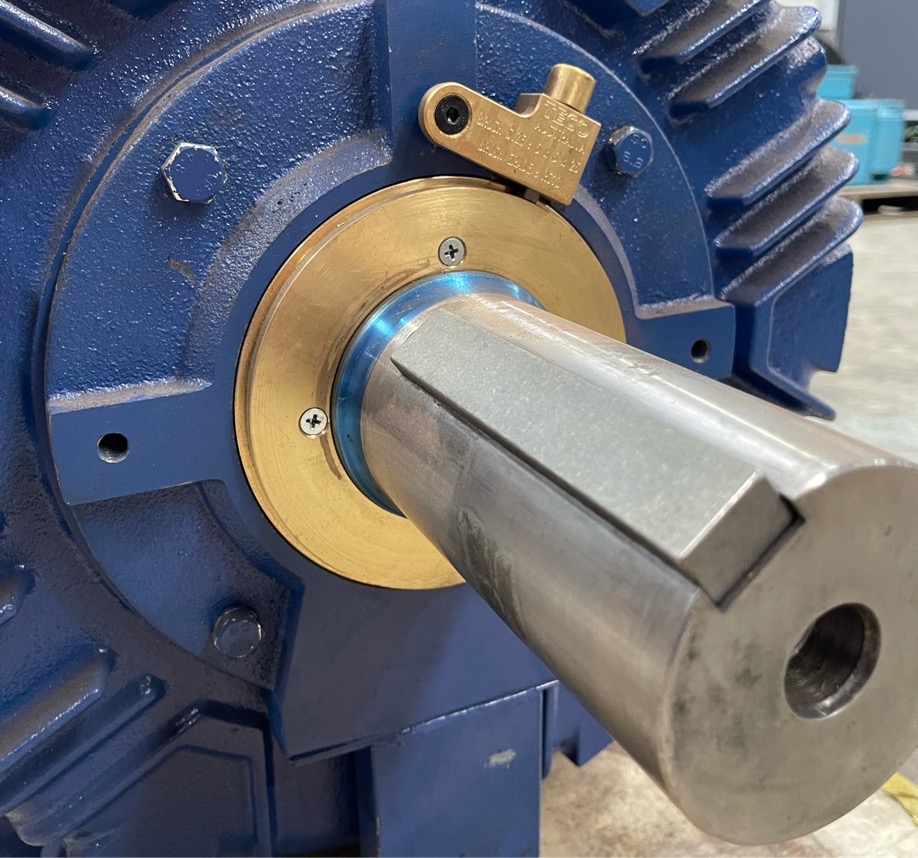

| Shaft diameter | 80 mm |
| Shaft length | 170 mm |
| Notes | Drive End Roller Bearing, plus set up for VSD application |
| Insulation Class | F |

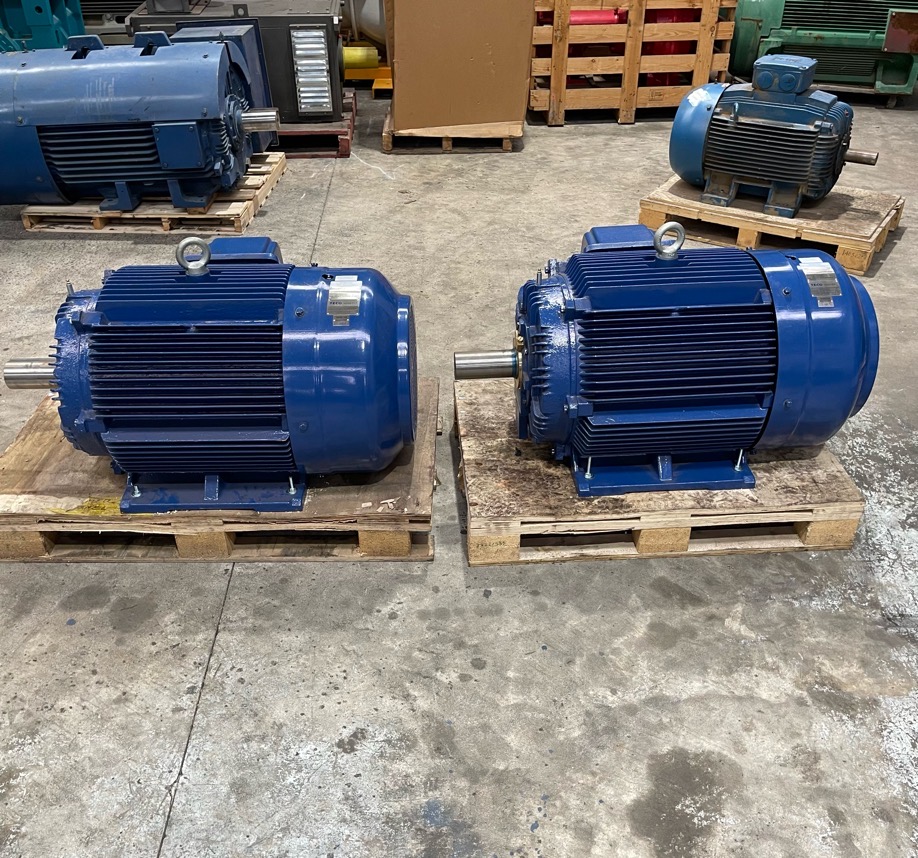

| Quantity | 2 (identical pair) |
| Condition | New / Unused |
