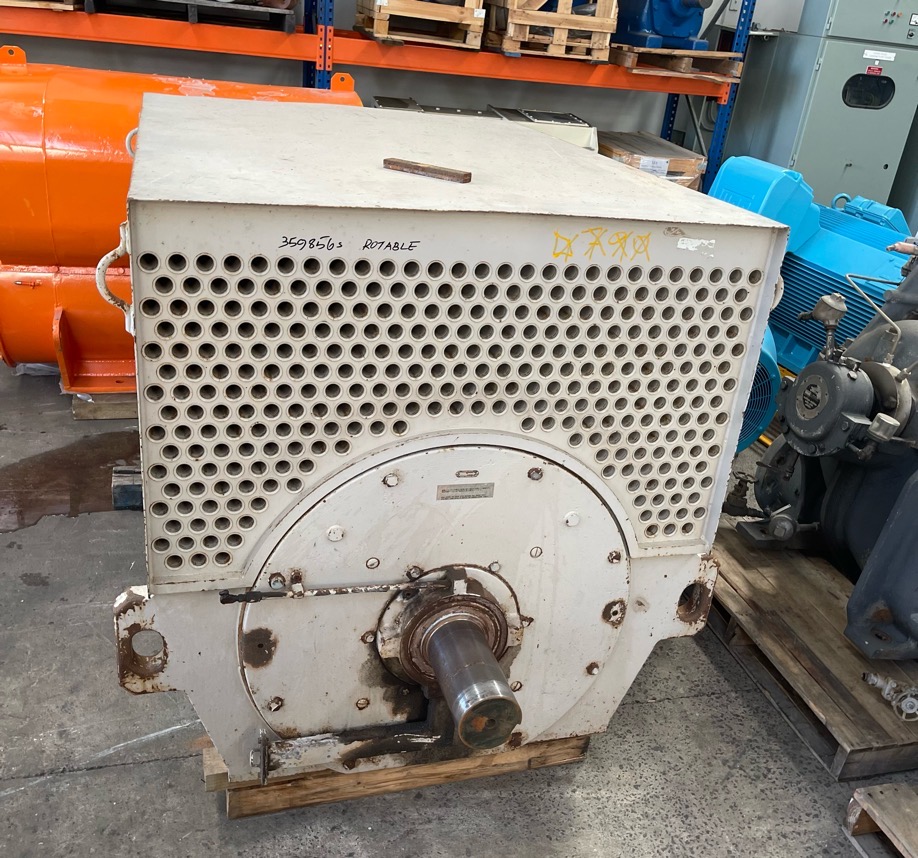

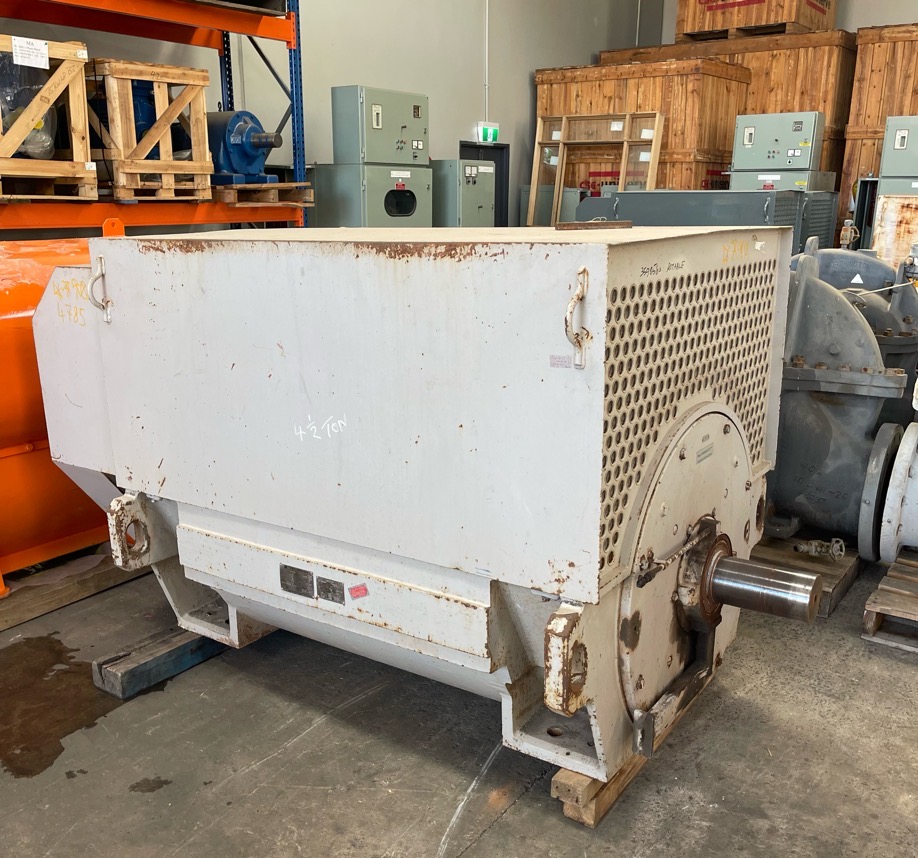

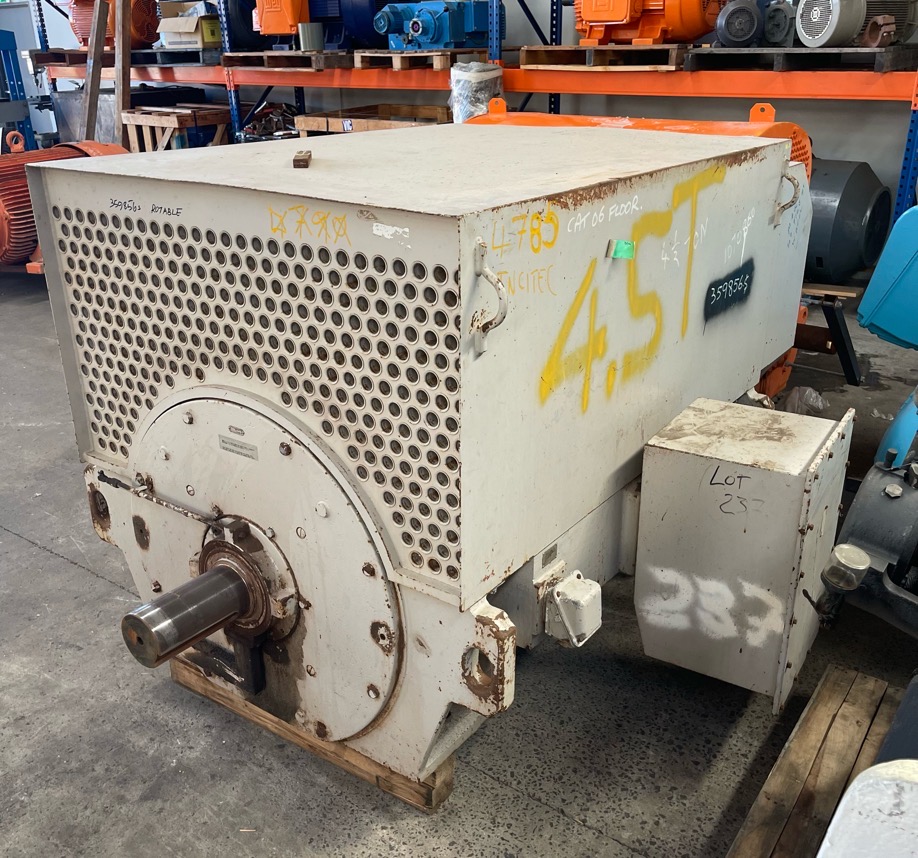

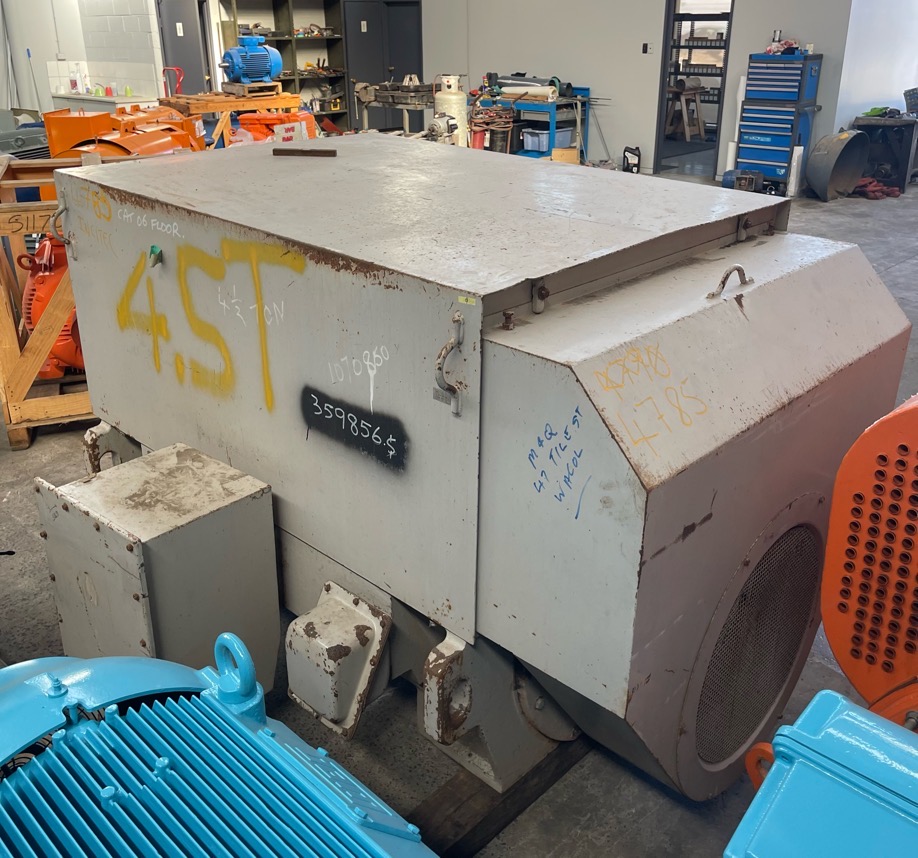

850 kw AC Electric Motor
1140 hp, 6-pole, 3300v, 400 frame, Toshiba < Back

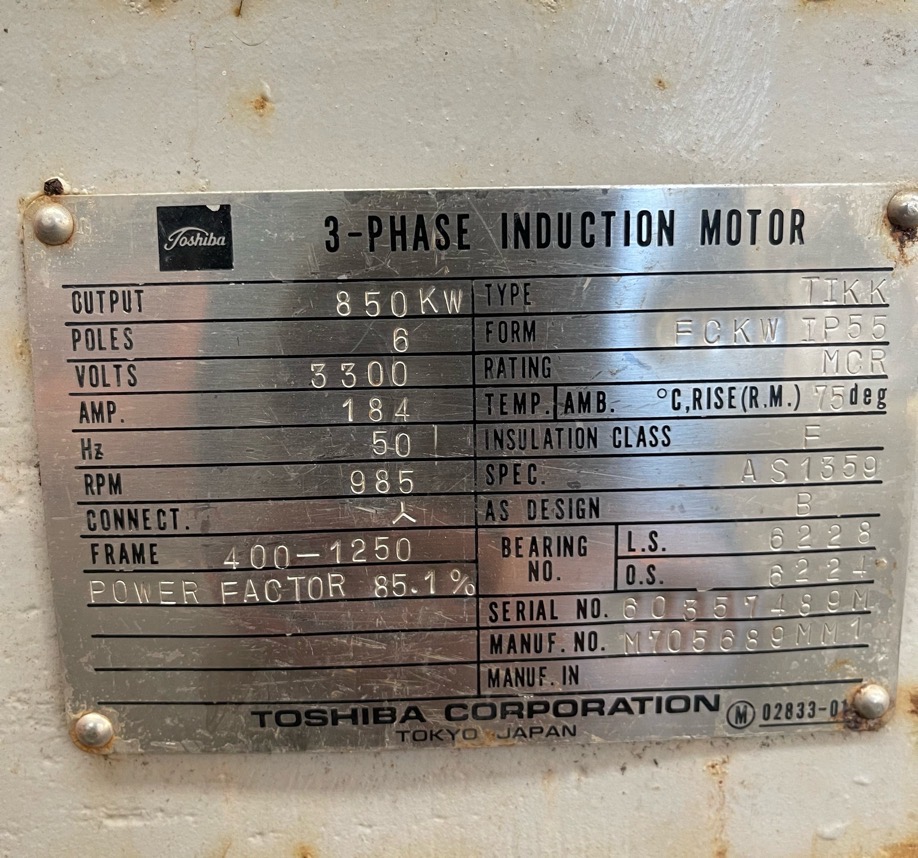

| Type | AC Electric Motor |
| Make | Toshiba |
| Model Number | TIKK FCKW IP55 |
| Manufacture origin | Japan |
| KW | 850 |
| HP | 1140 |
| Poles | 6 |
| Rated RPM | 985 |
| Rated Frequency | 50 hz |
| Rated Voltage | 3300 v (3.3kv) |
| F/L Amps | 184 A |
| Protection Rating | IP 55 |
| Mount | B3 Foot |
| Frame | 400-1250 |
| Weight | 4500 kg |
| Centre shaft height | 400 mm |
| Shaft diameter | 130 mm |
| Quantity | 1 |
| Condition | VGC Decommissioned critical spare |
