TKL Super Titan 550x600-445
500kw, 1100 L/S 3960 m3/H, 40m Head < Back
| Type | Water Pump |
| Make | Thompsons Kelly & Lewis AUSTRALIA |
| Model Number | Super Titan 550x600-445 |
| KW | 500 |
| Rated RPM | 1490 |
| Mount | Foot |
| Weight | 3300 kg |

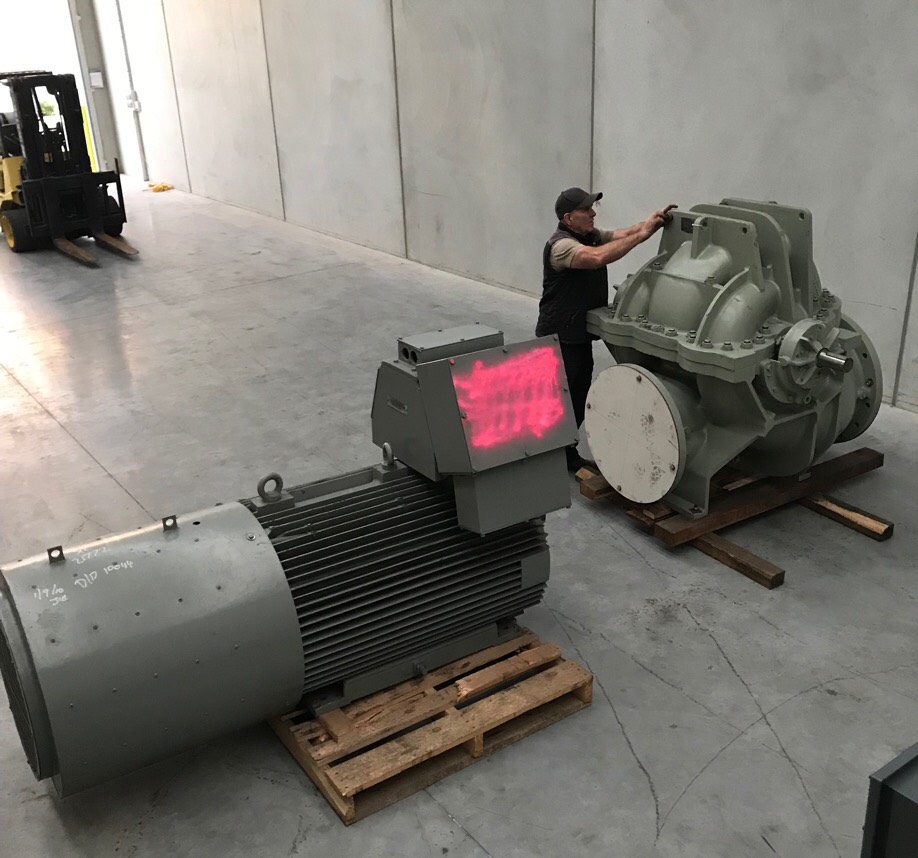

| Notes | Can supply Elec.Motor to suit. Data & Flow Chart on request |
| Frame Number | 16 |
| Diameter Discharge mm | 550 |
| Diameter Suction mm | 600 |
| Nom Impeller Dia mm | 445 |
| Flow Rate | 800 - 1200 L/S |
| Total Head | 35 - 60 m |
| Best efficiency Point | 1100 L/S @ 40m |
| Drive Motor | 500 kw 4P |
| Quantity | 1 |
| Condition | Unused |
